- Remove the 8 screws on the splicing piece of trunking rail.
- Remove the splicing piece.
- Fold the wire and the splicing terminal back into the track.
- Slide the plug, select L1, L2, L3 Wire. Install the luminaire light body.
- Push and fix the lamp body into the plug position of the trunking rail.
- Fix the end cap.
- Installation is completed.

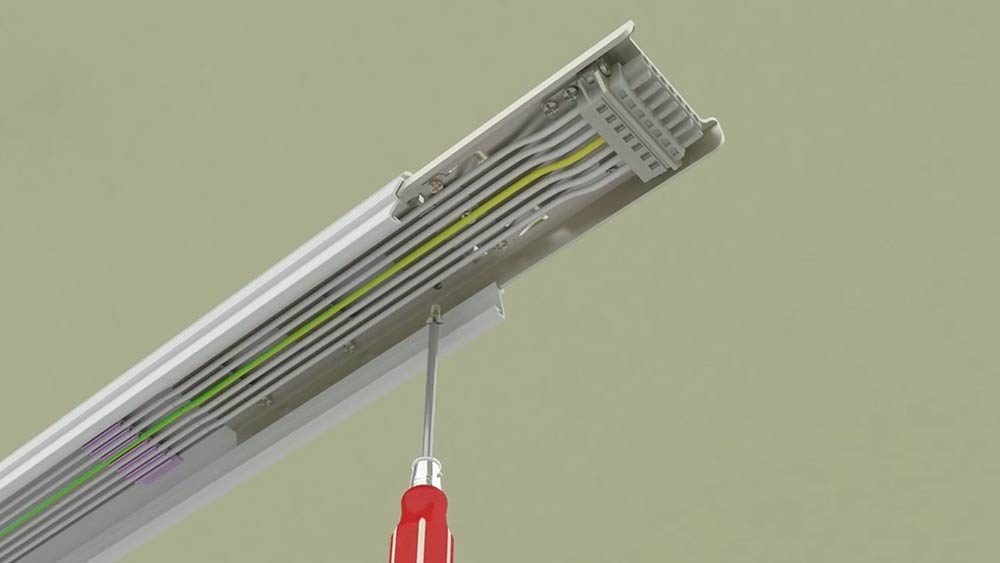

Remove the 8 screws on the splicing piece of trunking rail
Remove the 8 screws on the splicing piece of trunking rail

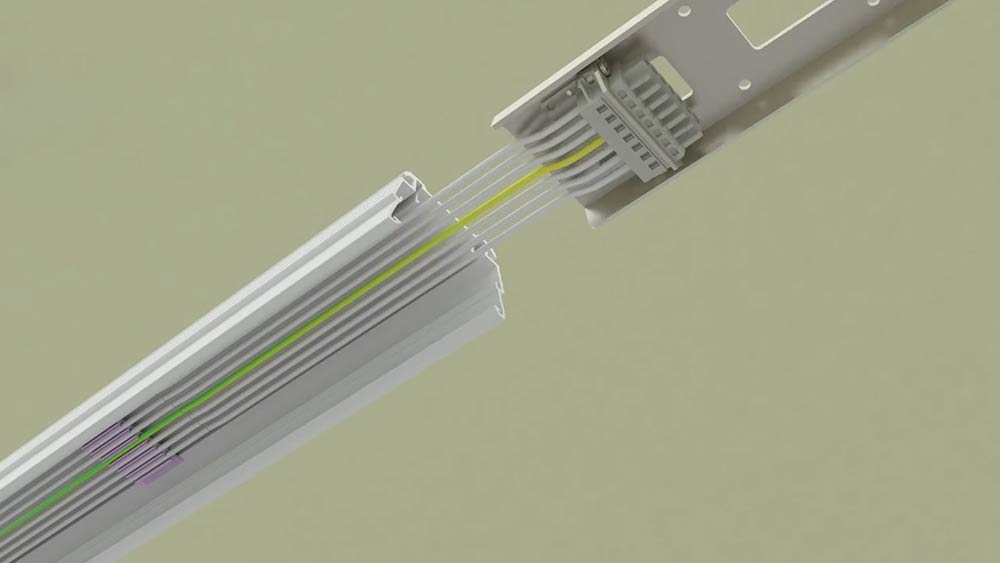

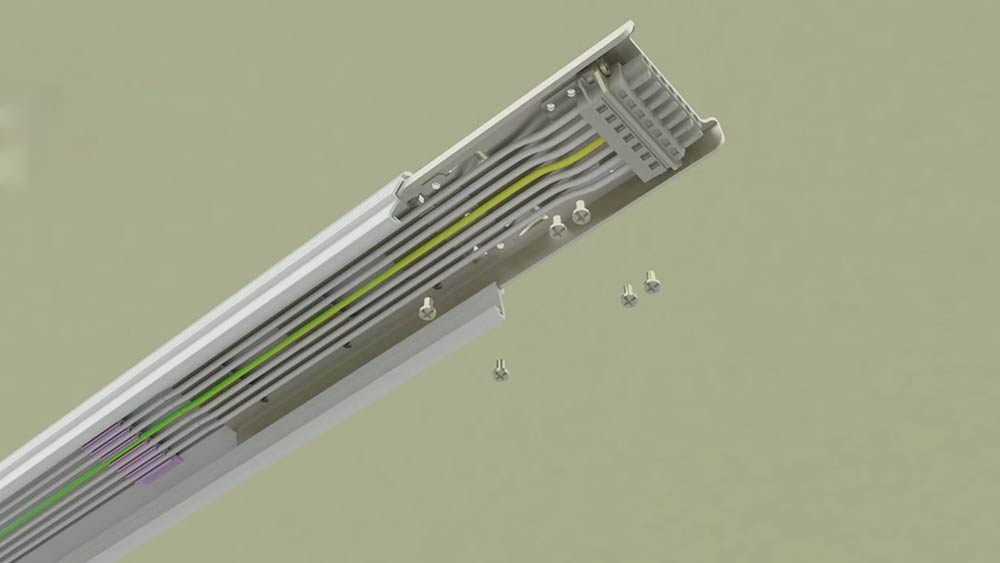

Remove the splicing piece
Remove the splicing piece

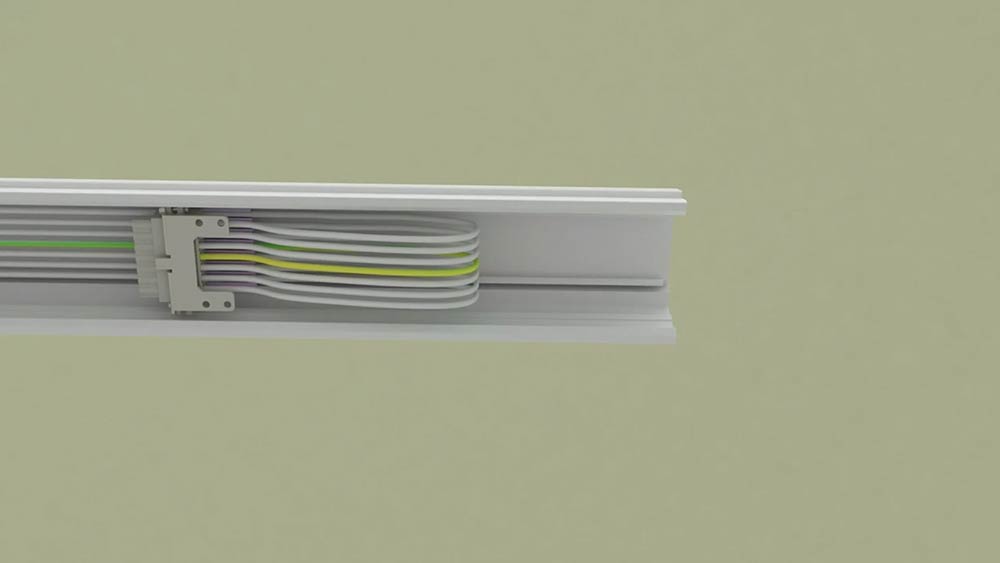

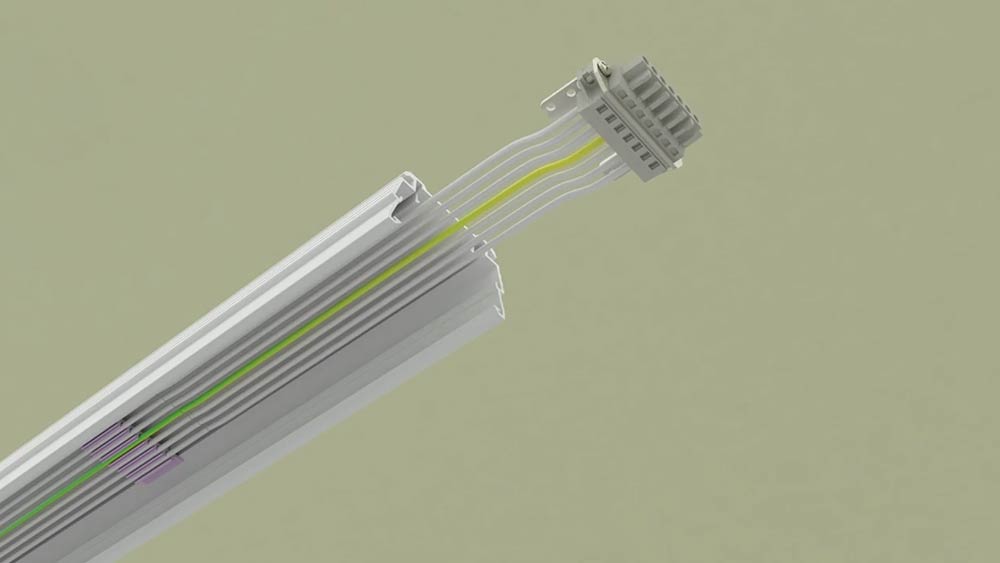

Fold the wire and the splicing terminal back into the track

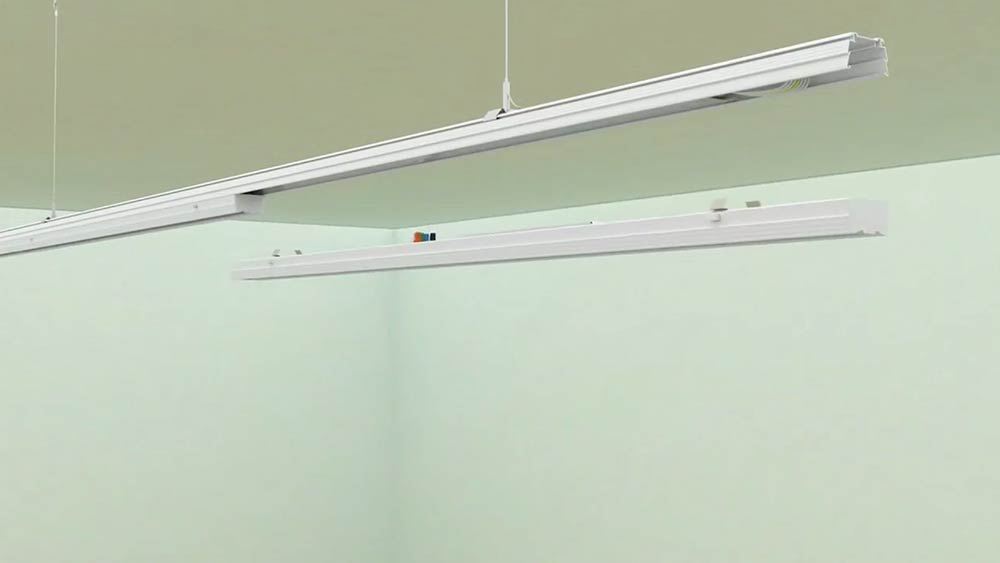

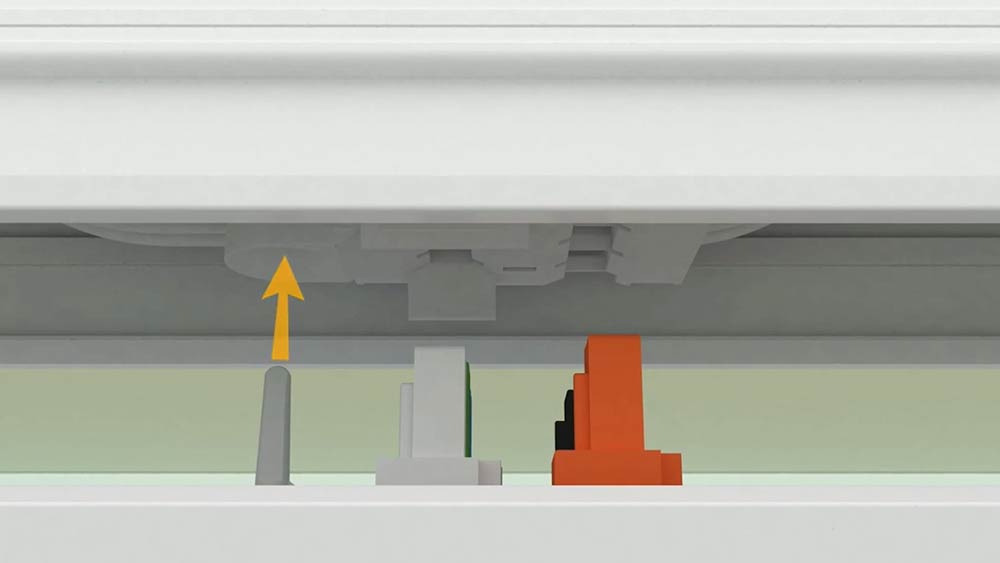

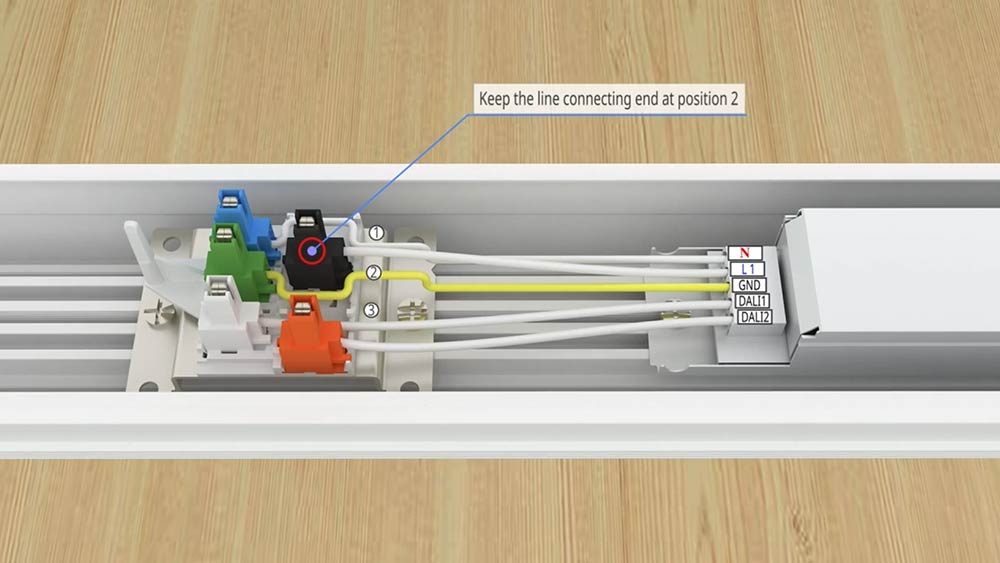

Slide the plug, select L1, L2, L3 Wire. Install the luminaire light body
Slide the plug, select L1, L2, L3 Wire. Install the luminaire light body

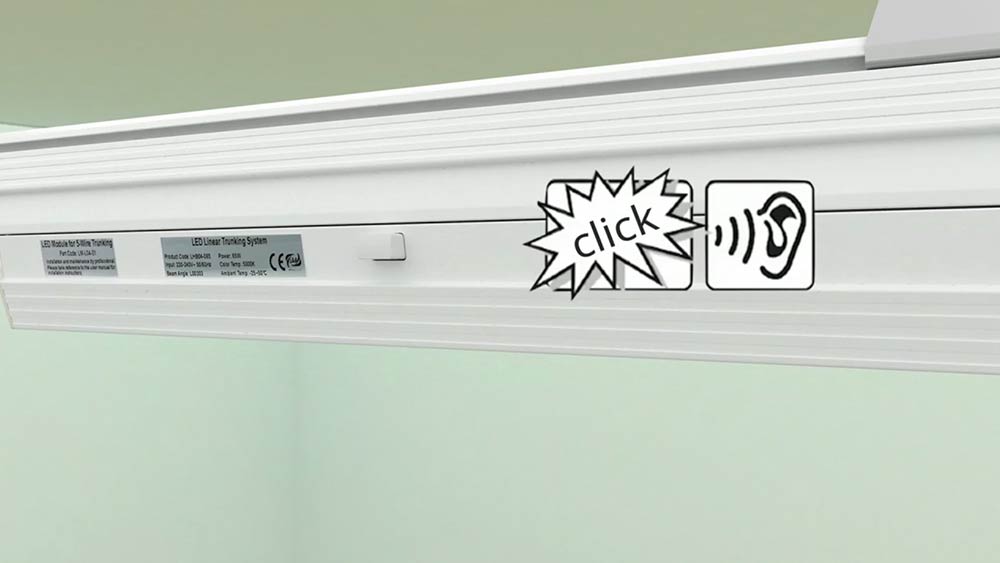

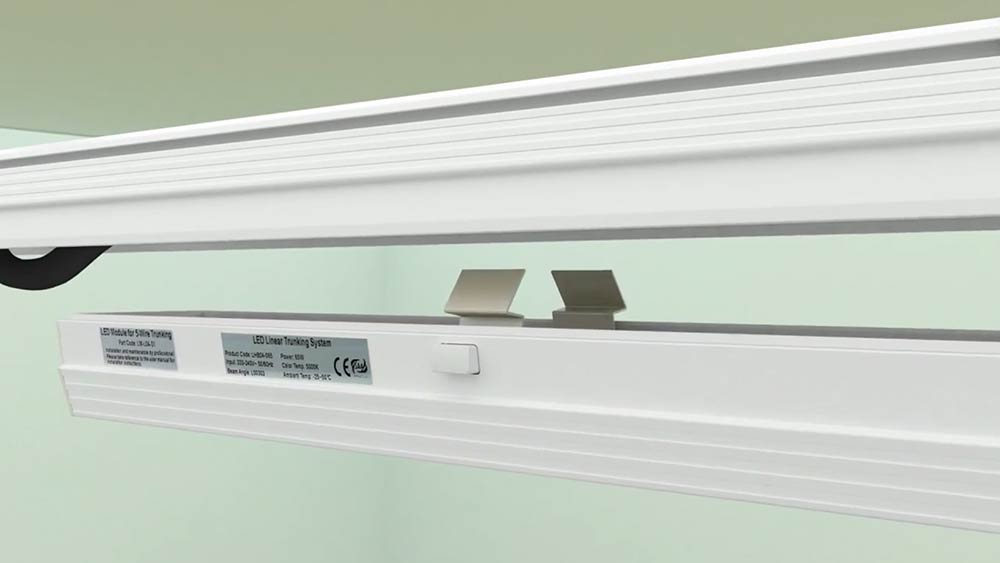

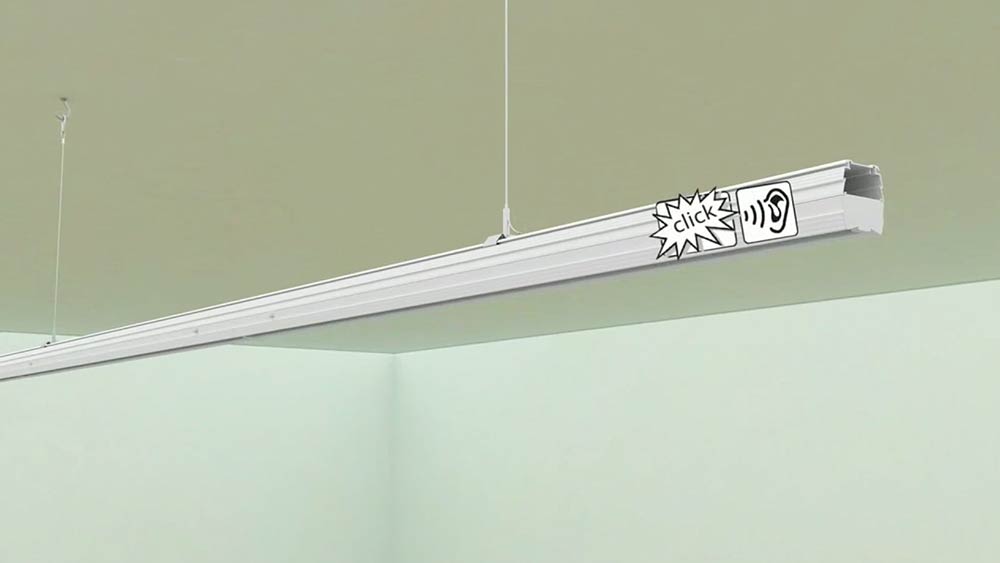

Push and fix the lamp body into the plug position of the trunking rail
Push and fix the lamp body into the plug position of the trunking rail
Push and fix the lamp body into the plug position of the trunking rail
Push and fix the lamp body into the plug position of the trunking rail

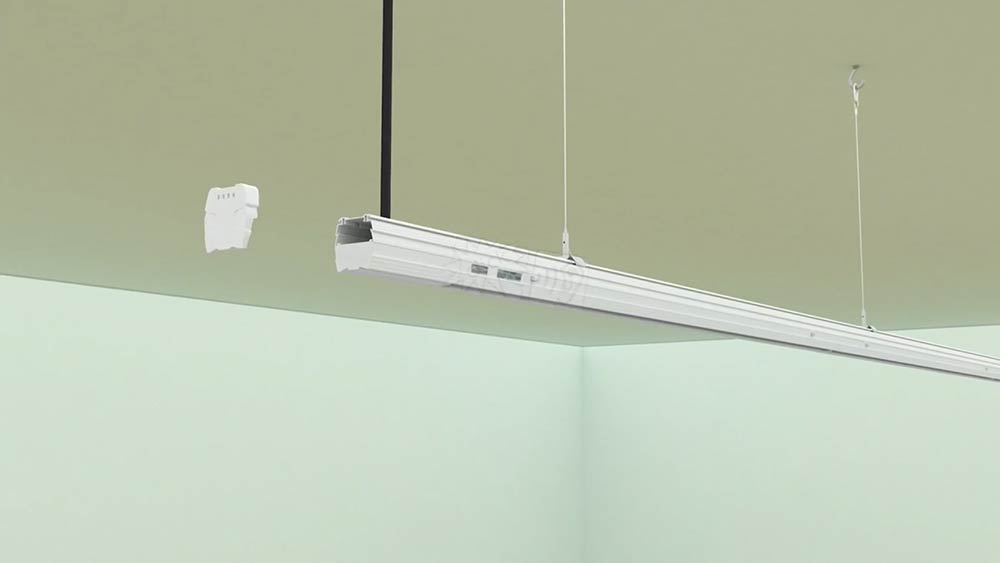

Fix the end cap

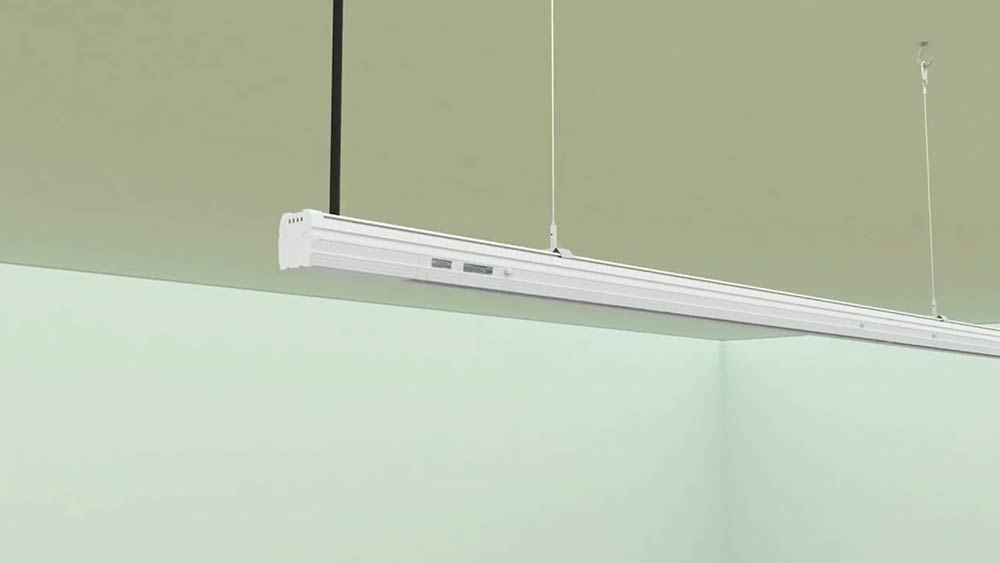

Fix the end cap of LED linear light fixture
