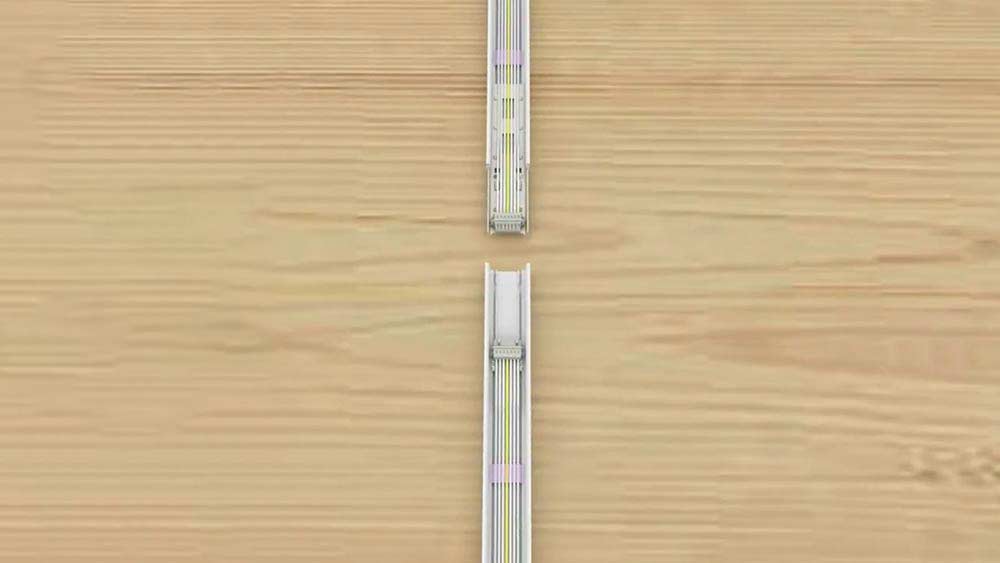

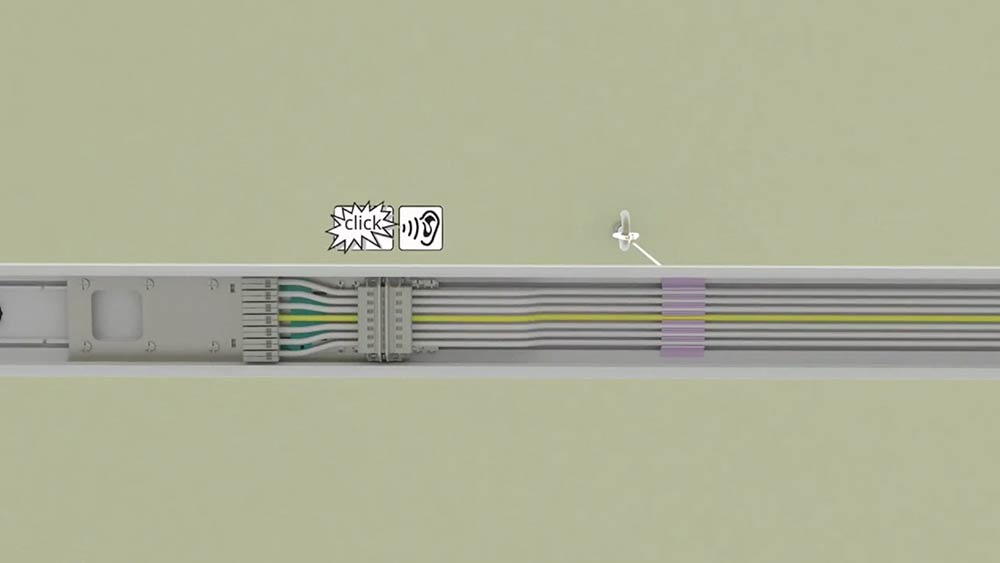

There are two modes to connect LED trunking light ( also called LED linear light ). Splicing tracks, aligning the insertion sites, and then stitching. Install the bellows and connect the corresponding line through the terminal.

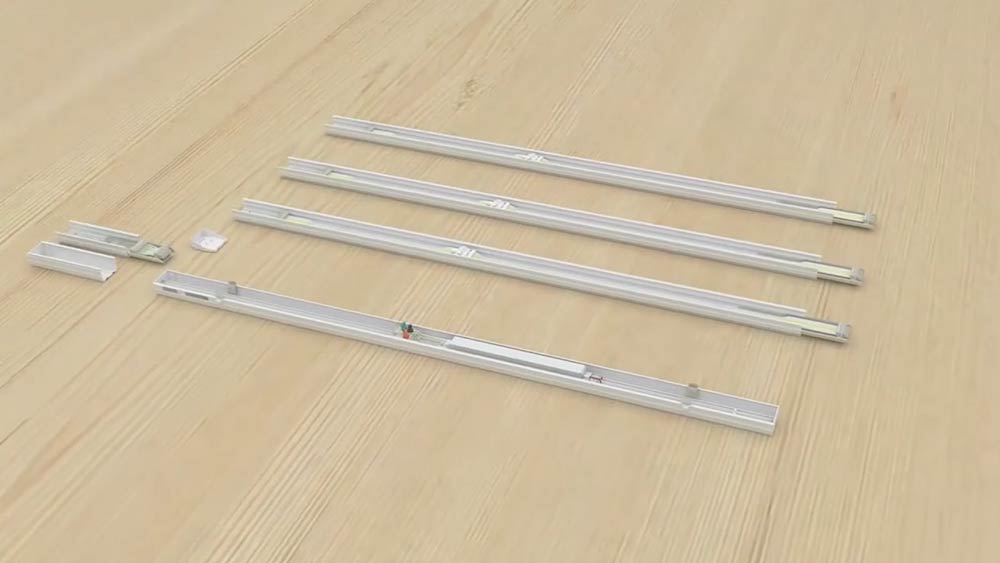

Connection – Integrated Packing
Push 2 whole sets of linear system directly to connect.
Note: integrated packing means luminaire and trunking rail are packed in one carton.

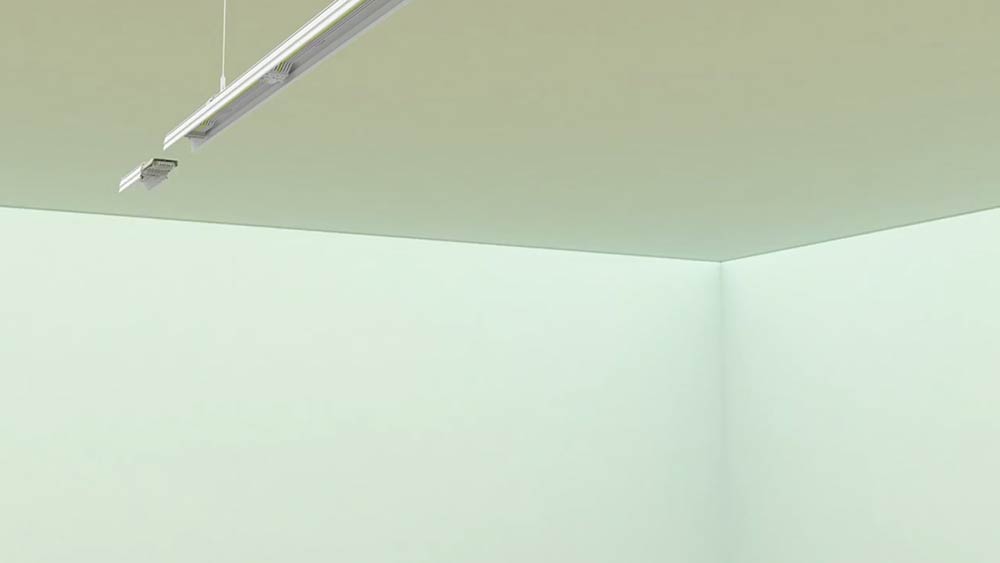

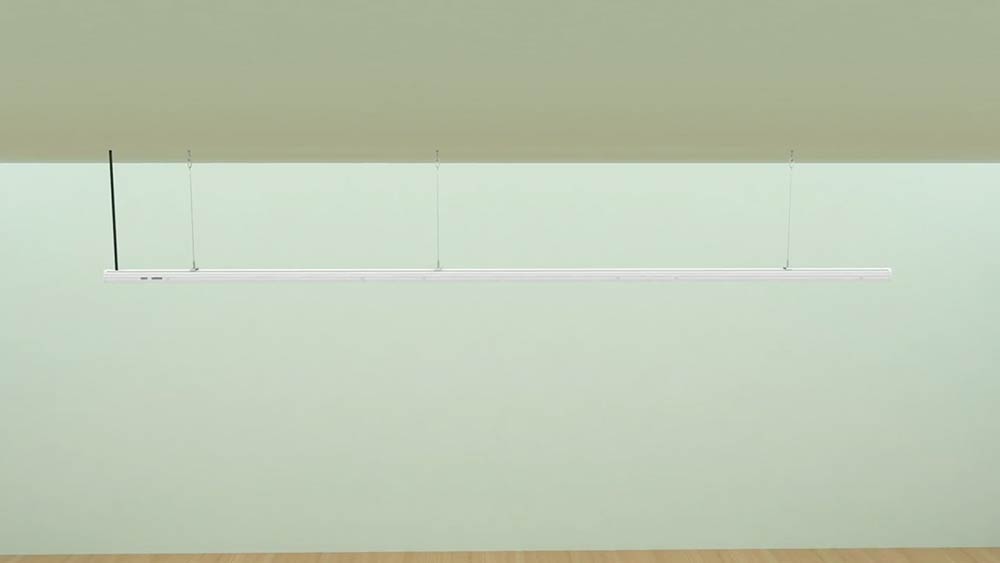

Adjust the position of suspension kits according to your need. The distance between two suspension kits is adjustable, 3m maximum.
Optional Connection – Separated Packing

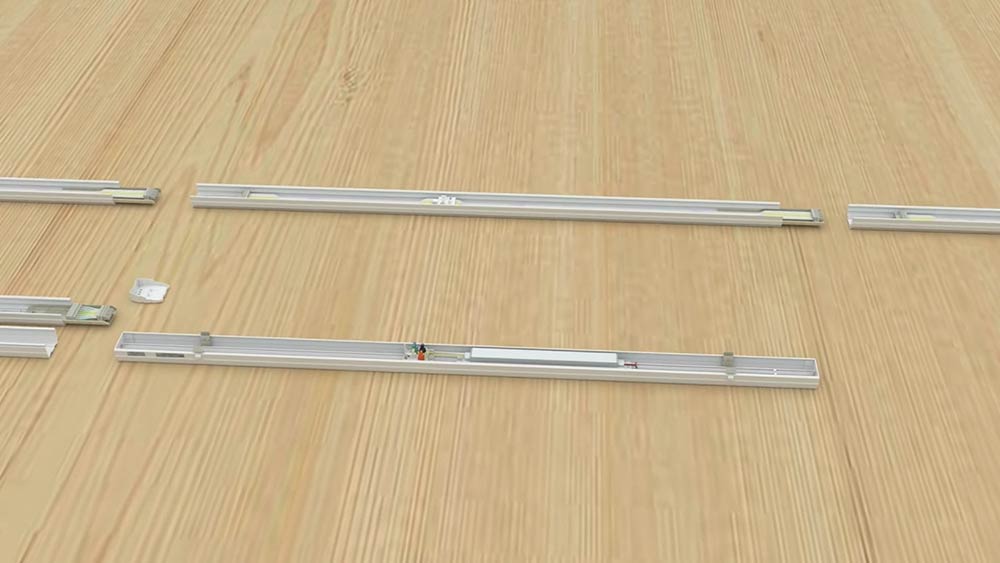

Separated packing means luminaire and trunking rail are packed in different carton.
Please follow this optional connection when the below situation happen.
You need to use L1, L2, L3 wire to control diferent linear light in 1 row connection.

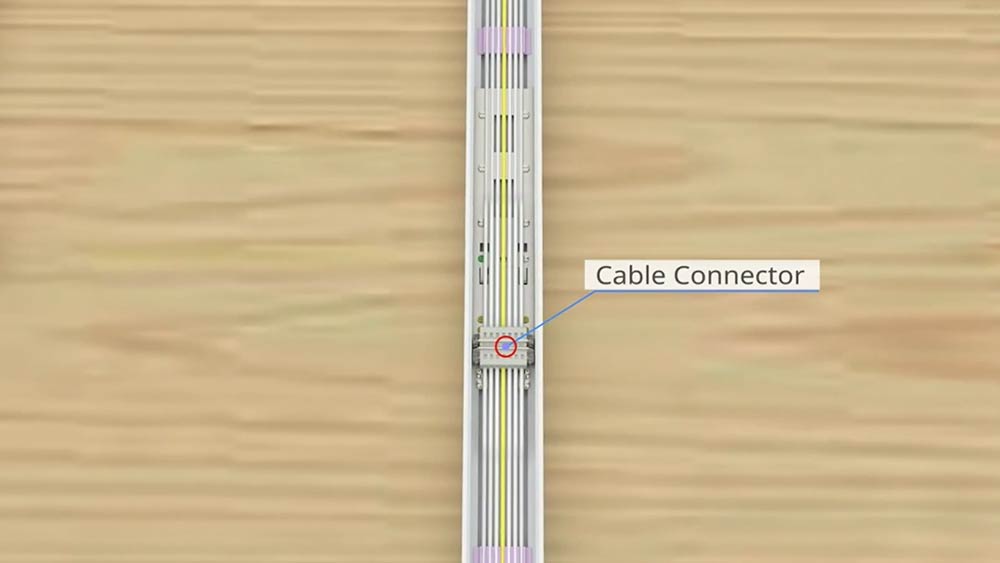

L1, L2, L3 are optional live wires, L2 is defaulted. To control linear light separately in 1 row, please move the black pin (live wire) in the luminaire to connect corresponding L1, L2, L3 in the trunking rail.
