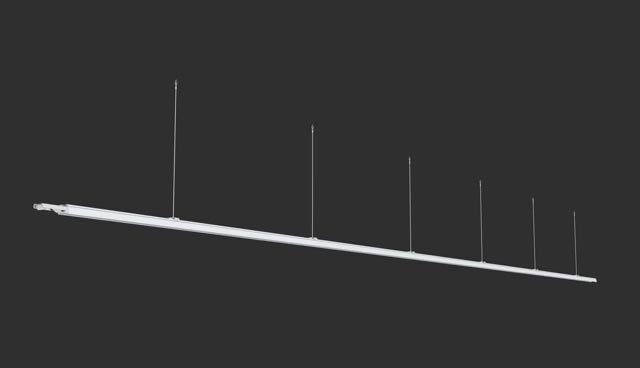

The suspension LED linear lighting system is a light fixture that hangs from the ceiling, usually suspended on wires or chains. This type of fixture creates a contemporary feel for a range of applications. here is a step by step guide to install trunking rail for LED linear lighting system.

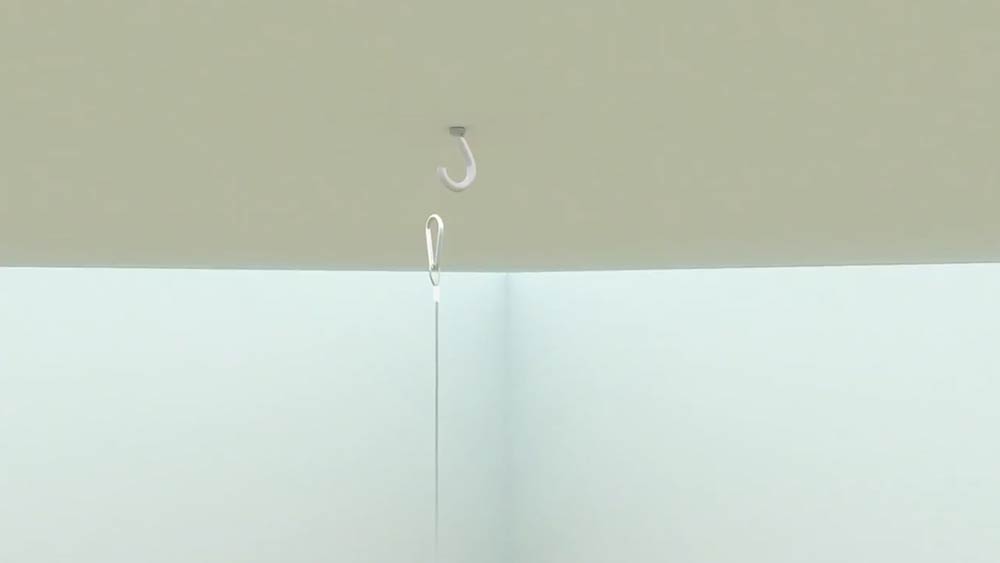

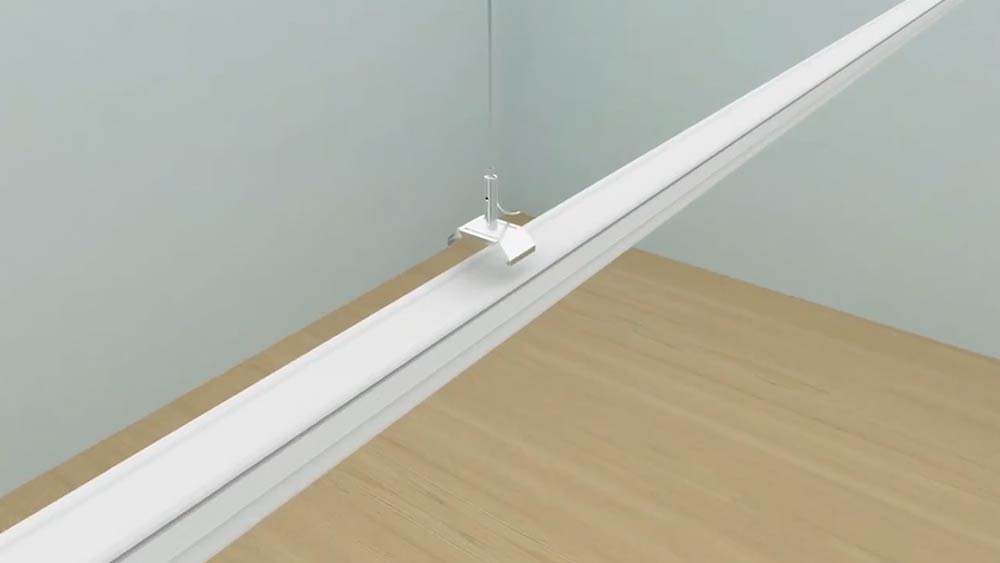

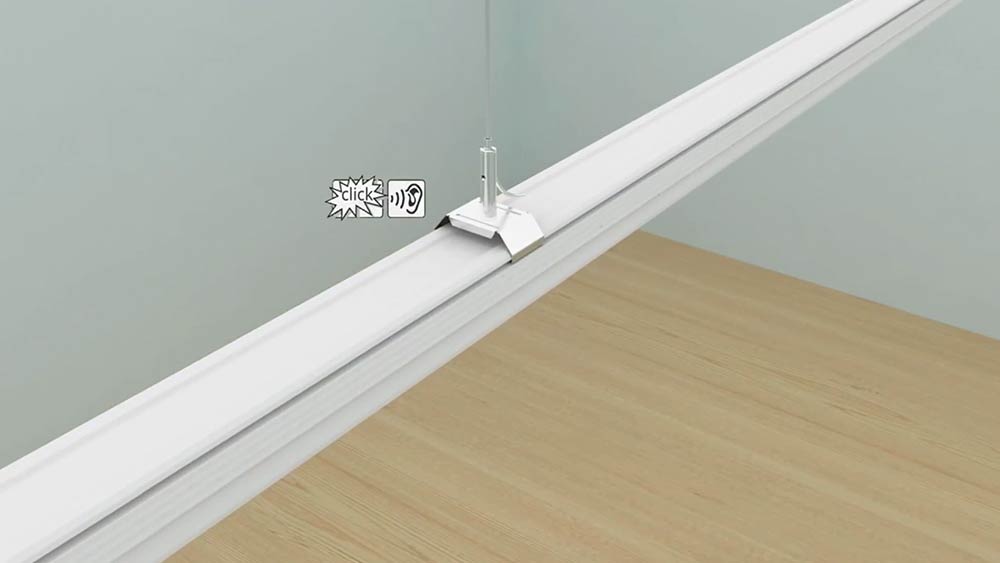

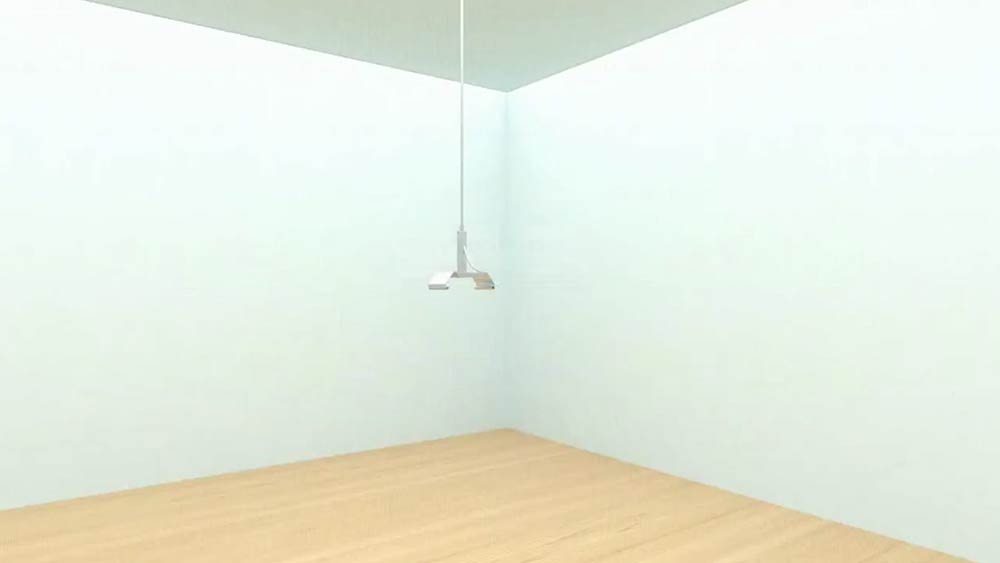

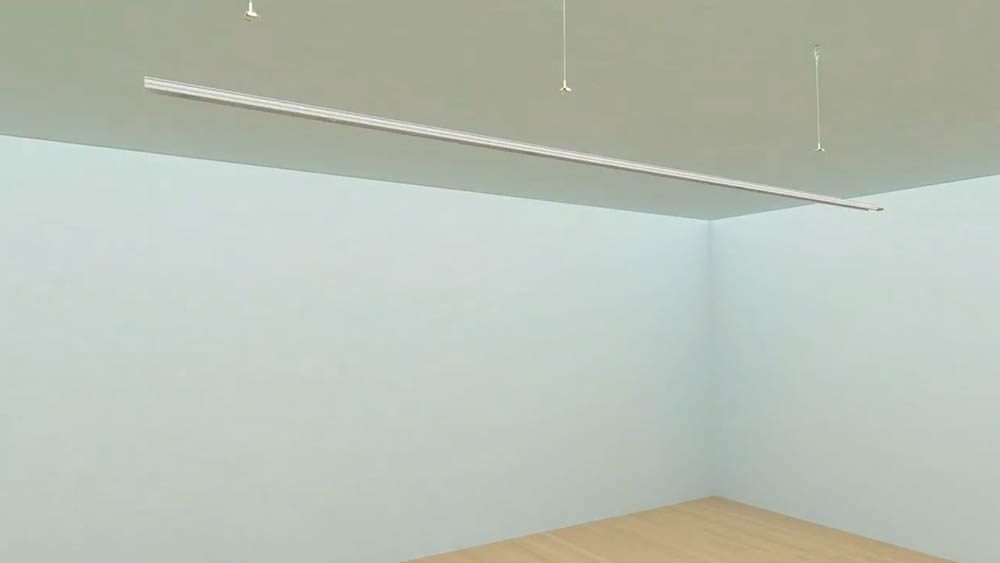

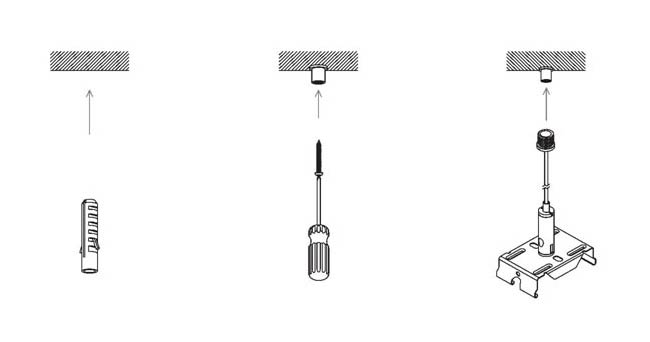

1-1. Mount the suspension kits to the ceiling.
Note: The distance between two suspension kits is adjustable, 3m maximum.

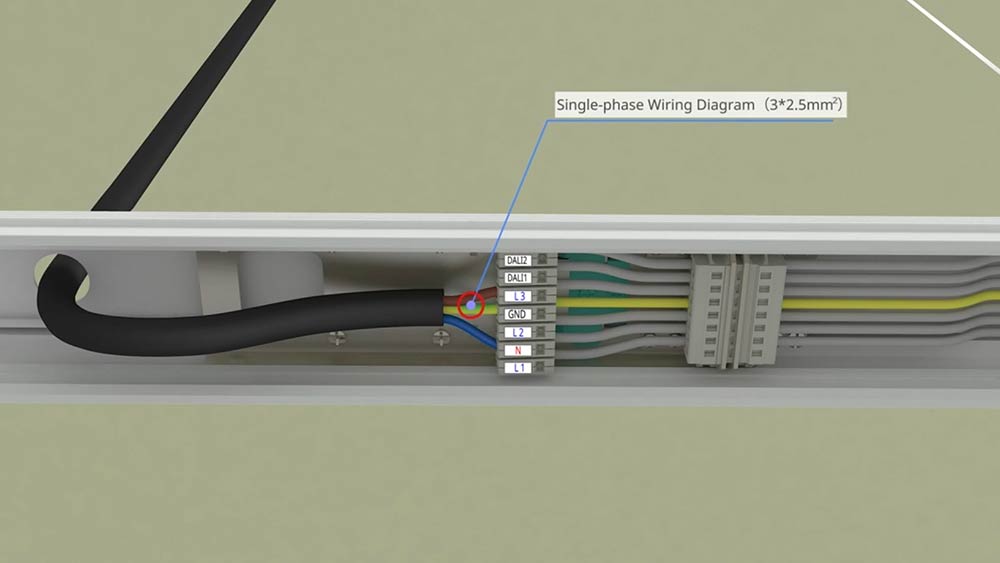

1-2. Disassemble 1 piece linear system as the trunking rail and luminaire to wire input.
Tap out 1, 2 or 3 holes with screw driver to input wires from trunking rail.
Note: 2 holes for 5/7 wires, 3 holes for 11 wires.
1-3. Screw the wire protector to the holes in the trunking rail.
1-4. Screw the end cap which is closed to the wire input to the trunking rail.
