Due to it’s low installation cost, everything in one box and installtion is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low mantenance. That’s typical for LED lighting and this also keep costs low.

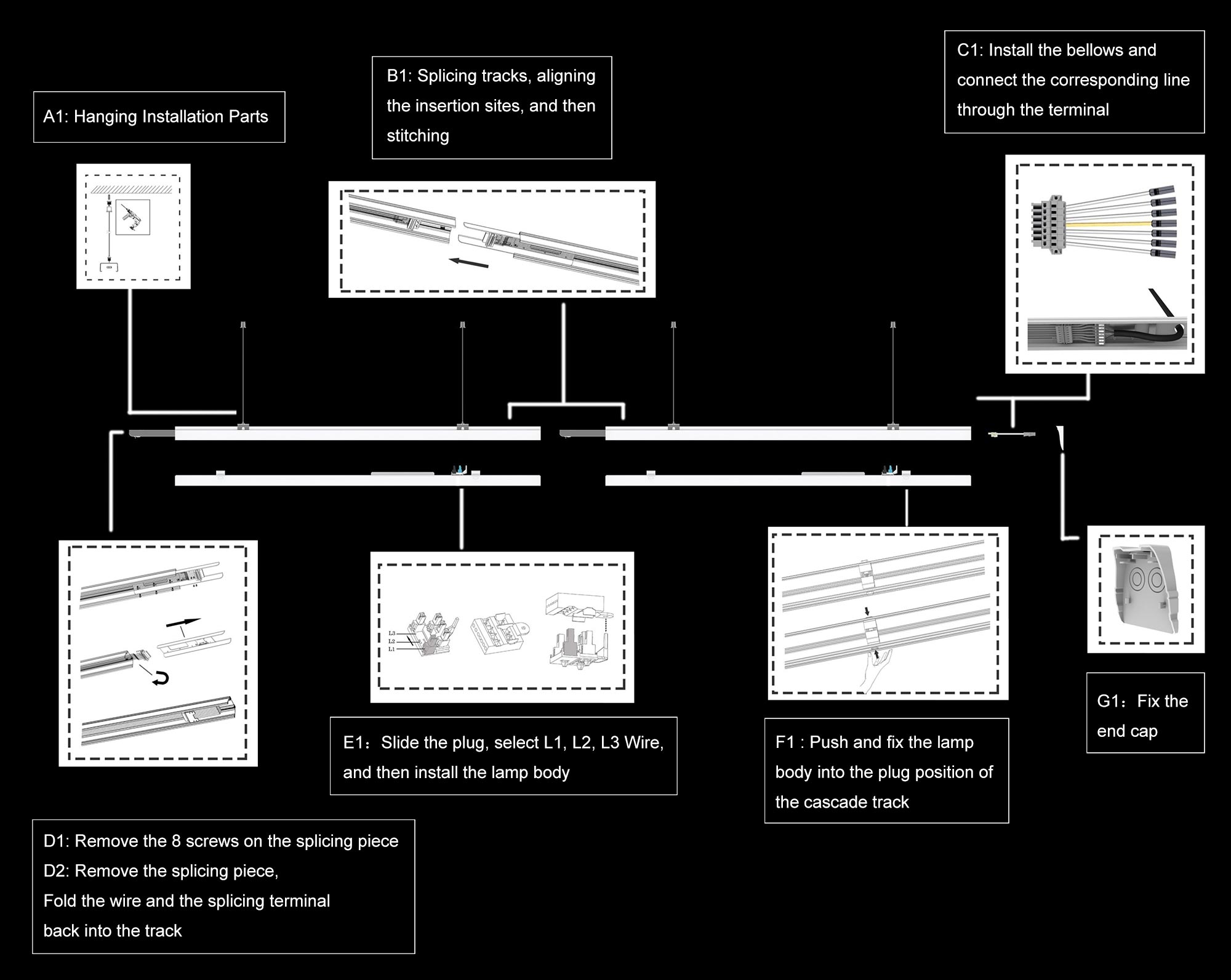

A1: Hanging Installation Parts
B1: Splicing tracks, aligning the insertion sites, and then stitching.
C1: Install the bellows and connect the corresponding line through the terminal.
D1: Remove the 8 screws on the splicing piece
D2: Remove the splicing piece,Fold the wire and the splicing terminal back into the track
E1： Slide the plug, select L1, L2, L3 Wire, and then install the lamp body.
F1: Push and fix the lamp body into the plug position of the cascade track.
G1： Fix the end cap.

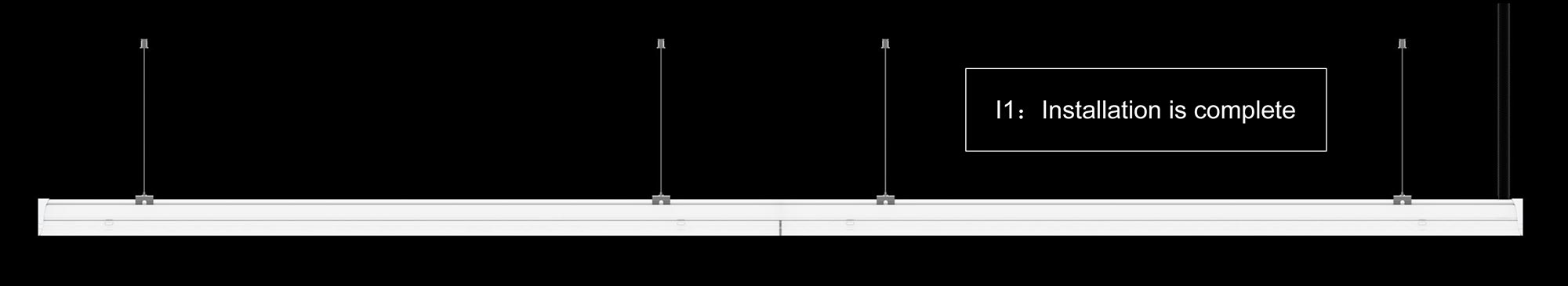

I1： Installation is completed.
