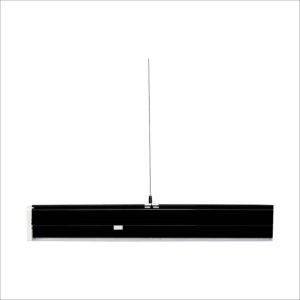

The suspension LED linear lighting system is a light fixture that hangs from the ceiling, usually suspended on wires or chains. This type of fixture creates a contemporary feel for a range of applications. Then how to install suspension LED linear lighting system, here is a step by step guide.

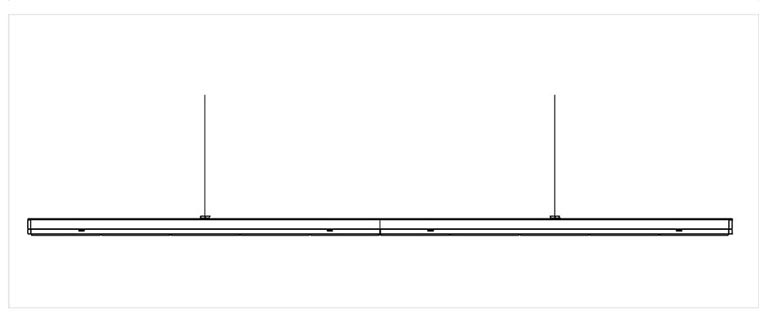

Step 1: Suspension
1-1. Mount the suspension kits to the ceiling.
Note: The distance between two suspension kits is adjustable, 3m maximum.
1-2. Disassemble 1 piece linear system as the trunking rail and luminaire to wire input.
Tap out 1, 2 or 3 holes with screw driver to input wires from trunking rail.
Note: 2 holes for 5/7 wires, 3 holes for 11 wires.
1-3. Screw the wire protector to the holes in the trunking rail.
1-4. Screw the end cap which is closed to the wire input to the trunking rail.
Step 2: Wire Input

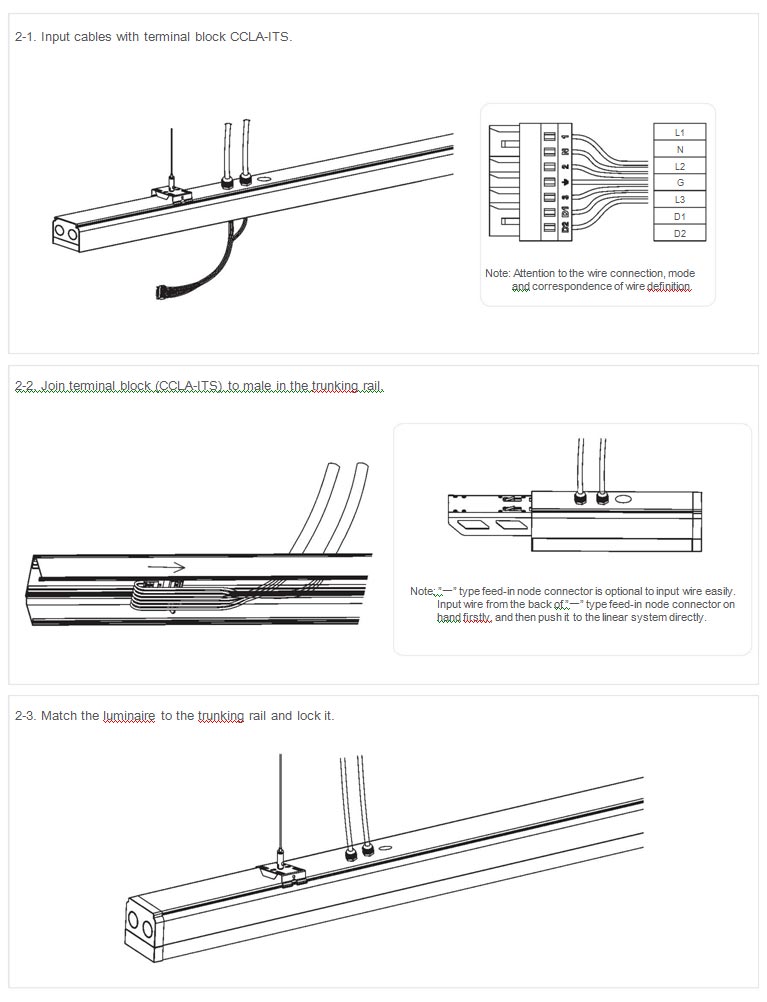

2-1. Input cables with terminal block CCLA-ITS.
Note: Attention to the wire connection, mode and correspondence of wire definition.
2-2. Join terminal block (CCLA-ITS) to male in the trunking rail.
Note: ”一” type feed-in node connector is optional to input wire easily. Input wire from the back of ”一” type feed-in node connector on hand firstly, and then push it to the linear system directly.
2-3. Match the luminaire to the trunking rail and lock it.
Step 3: Connection – Integrated Packing

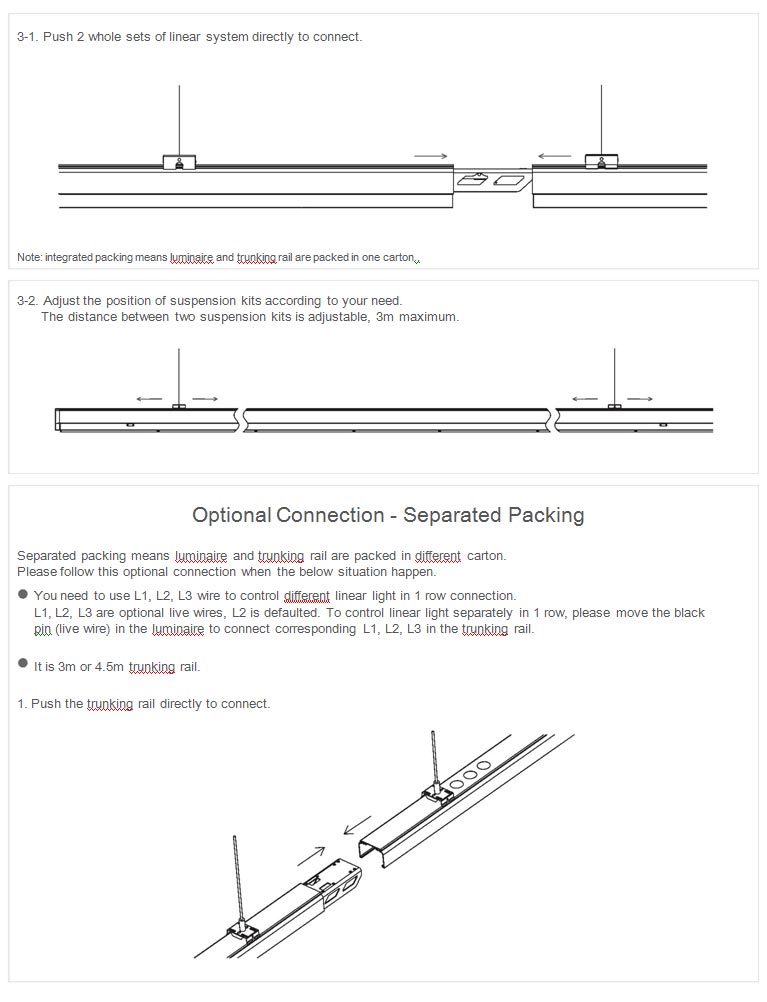

3-1. Push 2 whole sets of linear system directly to connect.
Note: integrated packing means luminaire and trunking rail are packed in one carton.
3-2. Adjust the position of suspension kits according to your need. The distance between two suspension kits is adjustable, 3m maximum.
Optional Connection – Separated Packing
Separated packing means luminaire and trunking rail are packed in different carton.
Please follow this optional connection when the below situation happen.
You need to use L1, L2, L3 wire to control different linear light in 1 row connection.
L1, L2, L3 are optional live wires, L2 is defaulted. To control linear light separately in 1 row, please move the black pin (live wire) in the luminaire to connect corresponding L1, L2, L3 in the trunking rail.
It is 3m or 4.5m trunking rail.
- Push the trunking rail directly to connect.

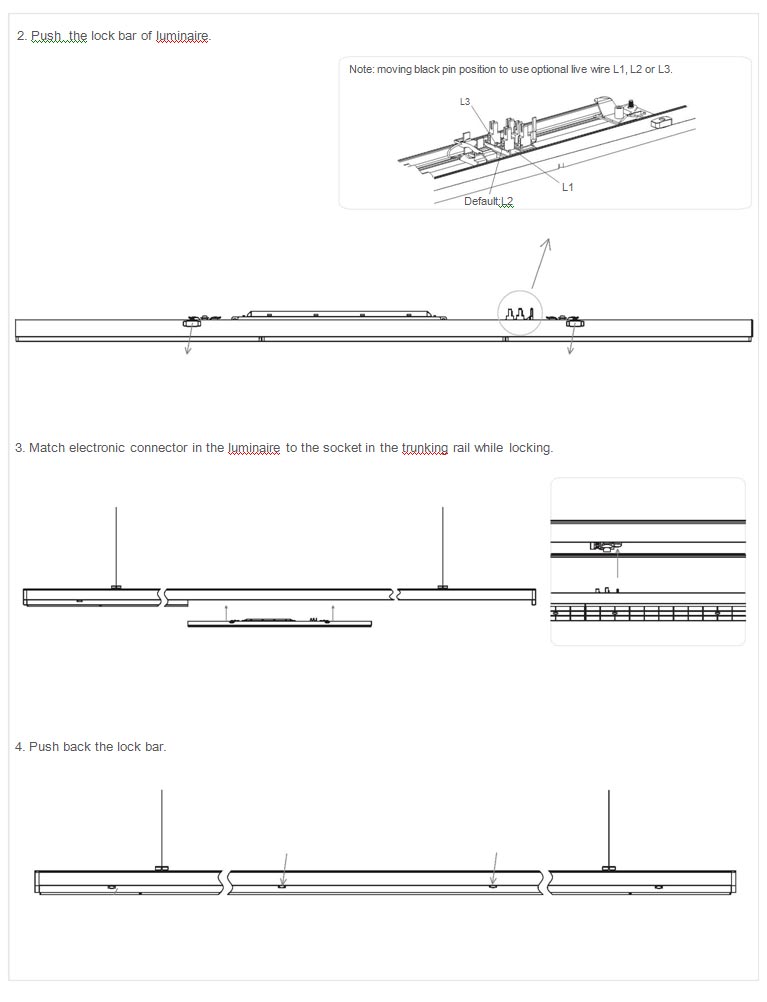

- Push the lock bar of luminaire.
Note: moving black pin position to use optional live wire L1, L2 or L3. - Match electronic connector in the luminaire to the socket in the trunking rail while locking.
- Push back the lock bar.
Step 4: Closing

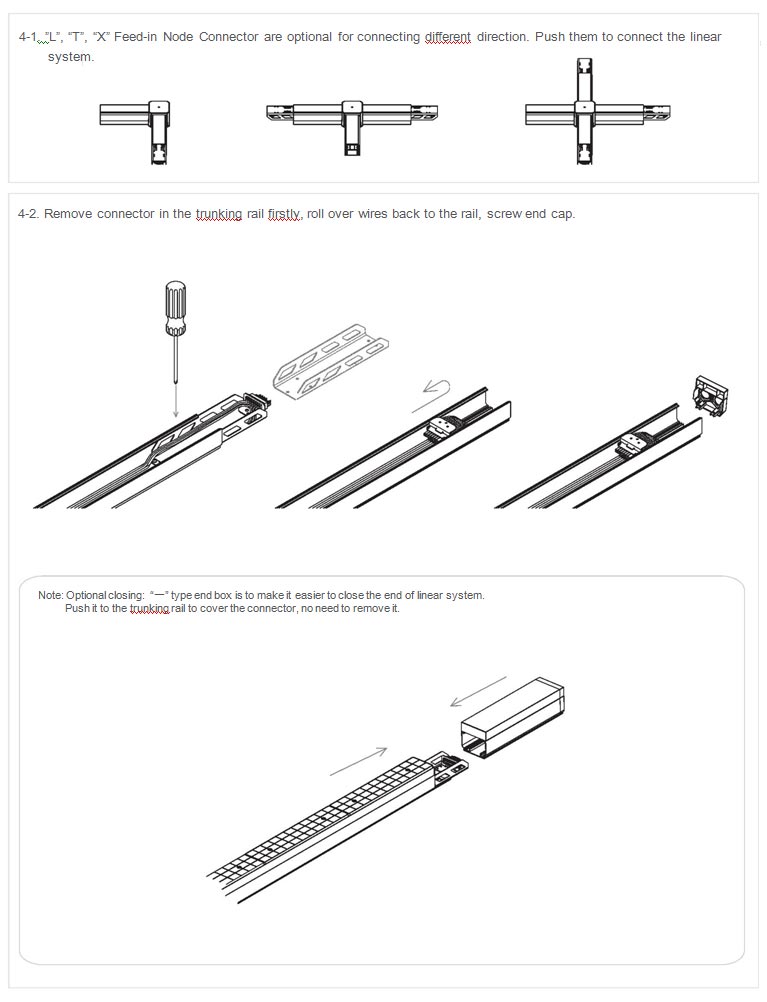

4-1. ”L”, “T”, “X” Feed-in Node Connectors are optional for connecting different direction. Push them to connect the linear system.
4-2. Remove connector in the trunking rail firstly, roll over wires back to the rail, screw end cap.
Note: Optional closing: “一” type end box is to make it easier to close the end of linear system. Push it to the trunking rail to cover the connector, no need to remove it.
