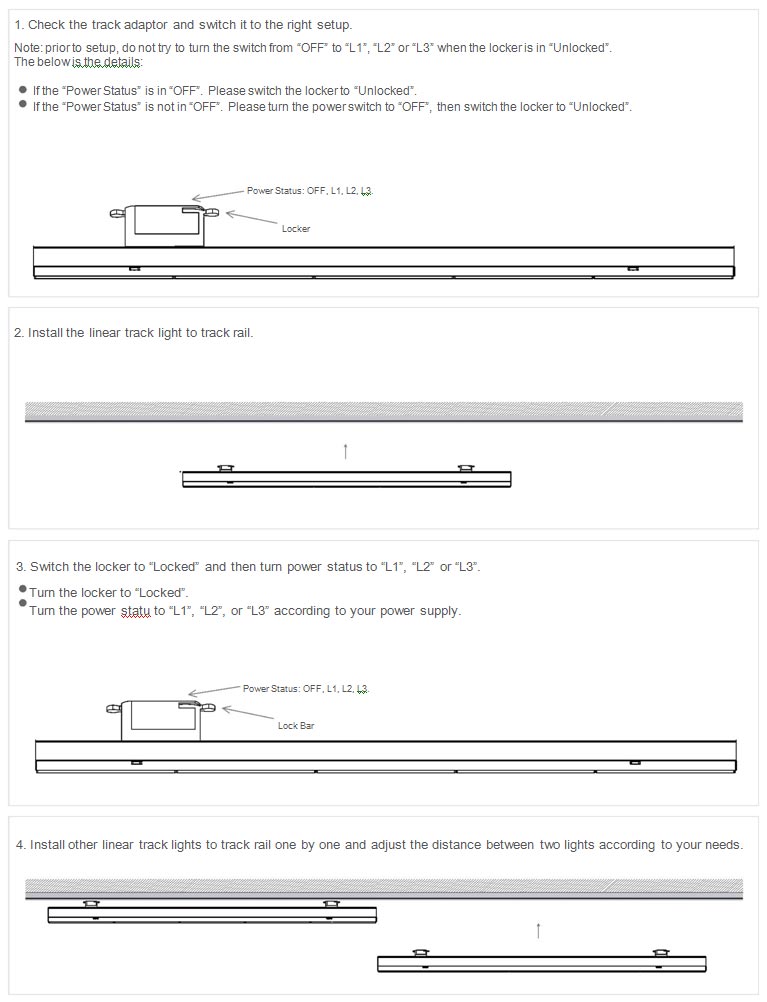

1. Check the track adaptor and switch it to the right setup.
Note: prior to setup, do not try to turn the switch from “OFF” to “L1”, “L2” or “L3” when the locker is in “Unlocked”. The below is the details:
- If the “Power Status” is in “OFF”. Please switch the locker to “Unlocked”.
- If the “Power Status” is not in “OFF”. Please turn the power switch to “OFF”, then switch the locker to “Unlocked”.
2. Install the linear track light to track rail.
3. Switch the locker to “Locked” and then turn power status to “L1”, “L2” or “L3”.
4. Install other linear track lights to track rail one by one and adjust the distance between two lights according to your needs.

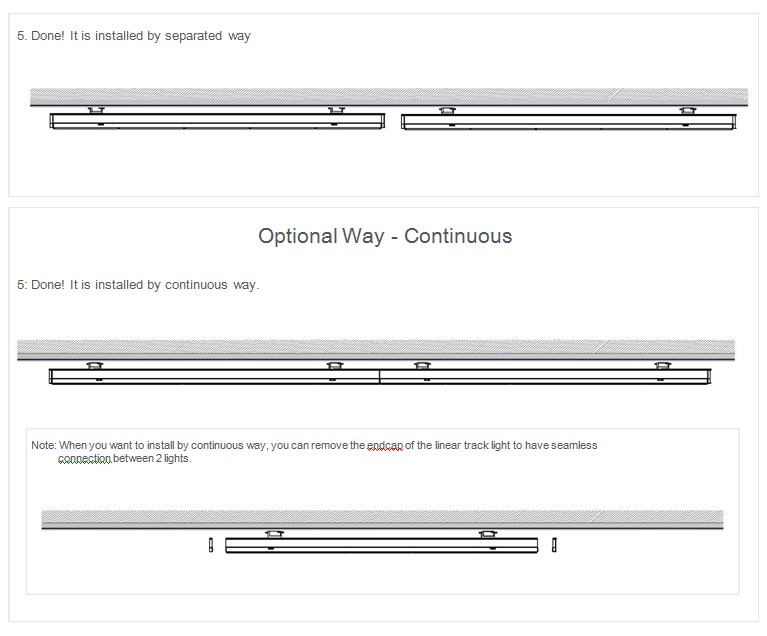

5. Done! It is installed by separated way
Optional Way – Continuous

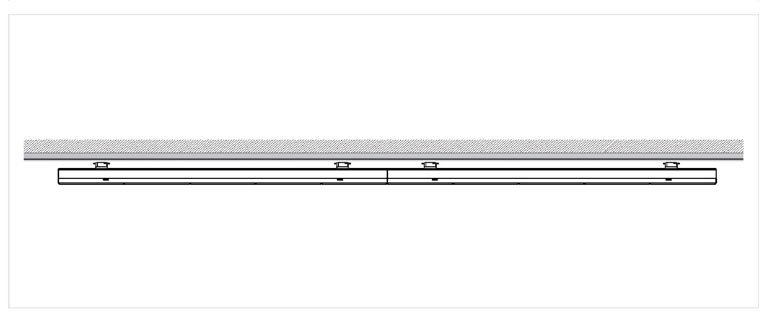

6: Done! It is installed by continuous way.
Note: When you want to install by continuous way, you can remove the endcap of the linear track light to have seamless connection between 2 lights.
