26W-85W Linkable LED Linear Lights
Integrated Single LED Linear Lamp Fixture Application

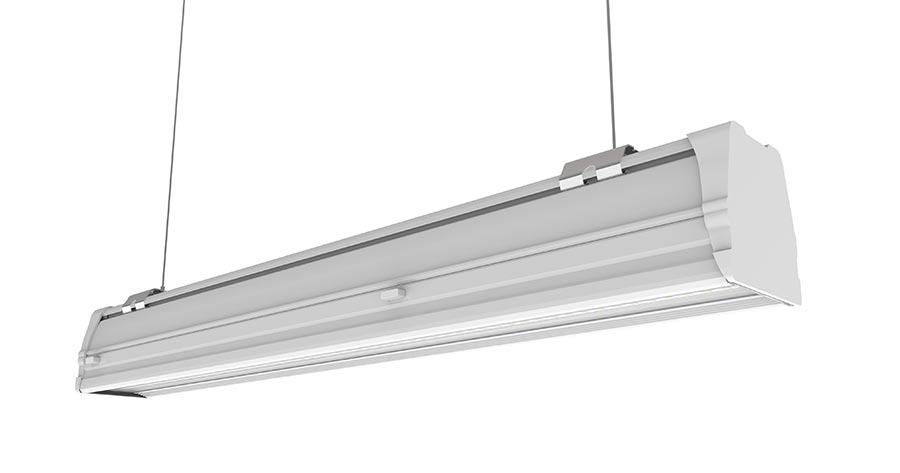

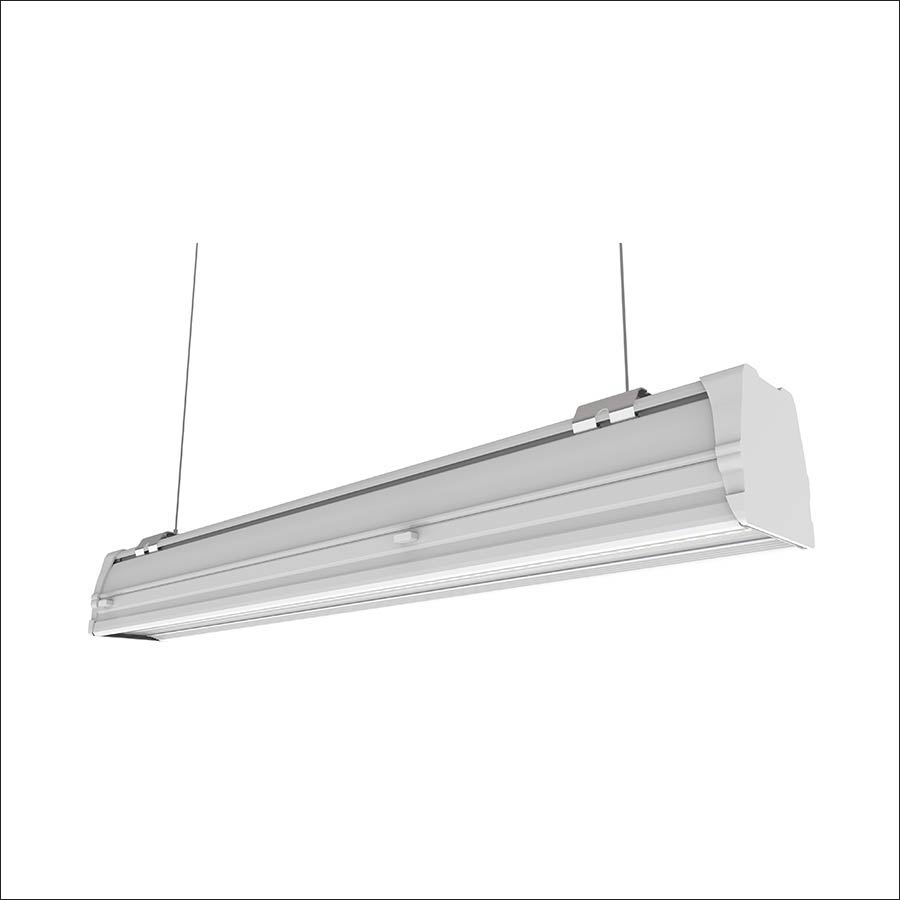

26W-85W Integrated Single LED Linear Lamp Fixture

The single LED linear lamp fixture is also an energy-efficient , low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications.

It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to it’s low installation cost, everything in one box and installtion is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lamp fixture is really good in terms of the low mantenance. That’s typical for LED lighting and this also keep costs low.

Category:

Item: YB-01-D Integrated Single
Product Name: 26W-85W Integrated Single LED Linear Lamp Fixture

  • Power: 26W 35W 55W 65W 85W
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k / 4000k / 5000k / 6000k
  • Rendering Index: Ra>80
  • Dimming: 0-10V/DALI
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric
  • 3 / 5 / 7 / 8 wire trunk rail
  • Length: 0.6m 1.2m 1.5m
  • 130 Lm/W
  • Warranty 5 Years

Differences Between Integrated Single Lamp and Continuous Linkable Light

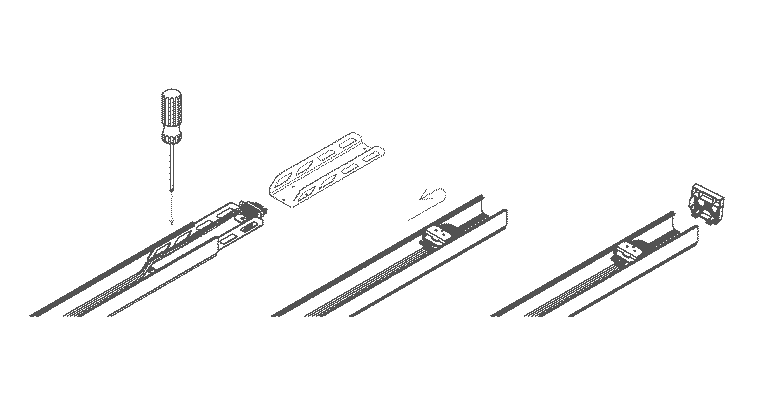

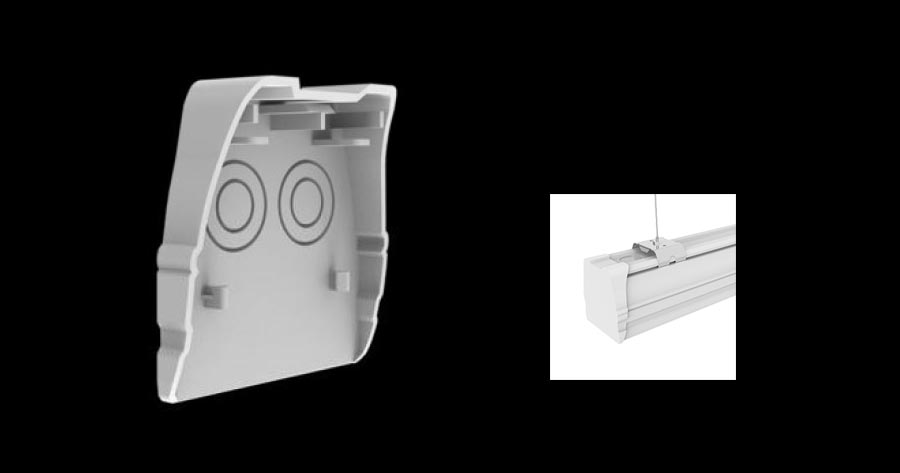

The single LED linear lamp fixture is one kind of linkable led linear lights, the connector in the trunking rail is removed firstly, the wires are rolled over back to the rail, and end cap is screwed. so it is a complete light with compact structure and elegant appearance. it can be installed in any place individually.

Features of 26W-85W Integrated Single LED Linear Lamp Fixture:

  • Compact structure, elegant appearance.
  • 60 seconds quick installation without any tools with Easy plug installation design.
  • Low installation cost, simply splicing to complete without the additional materials for installation. At the same time, the labor costs of wiring and fixture installation are significantly reduced.
  • A three-phase circuit is preset in the track and the lamp can be individually controlled as required.
  • Dimming mode: 0-10V and DALI.
  • Emergency mode: Emergency Battery/UPS System.
  • Sensor mode: microwave sensor and daylight sensor.
  • Mounting options: Surface mounted, chains or ropes.
  • Wide range of optics from 30° to 120° light distribution, and single or double symmetrical distribution. The special design lenses meet all your requirements of lighting applications.
  • 0.8mm aluminum housing for excellent heat dissipation.
  • Heat protection system, with excellent internal driver.
  • IES LM 79, CE, EMC, UL, ROHS, SAA are approved.
  • Fit for installation hight up to 5 meters.

Basic Parameter – OSRAM DRIVER / Samsung LEDs

Item Length Description Material
YB-01-D-06 3X 577mm 3 Core Trunk Rail Aluminium
YB-01-D-06 5X 577mm 5 Core Trunk Rail
YB-01-D-06 7X 577mm 7 Core Trunk Rail
YB-01-D-12 3X 1150mm 3 Core Trunk Rail Aluminium
YB-01-D-12 5X 1150mm 5 Core Trunk Rail
YB-01-D-12 7X 1150mm 7 Core Trunk Rail
YB-01-D-15 3X 1437mm 3 Core Trunk Rail Aluminium
YB-01-D-15 5X 1437mm 5 Core Trunk Rail
YB-01-D-15 7X 1437mm 7 Core Trunk Rail

Optical Lens of 26W-85W Integrated Single LED Linear Lamp Fixture

LED Sharp（30°）

The sharp-angle lens can make the light highly concentrated, focusing on the item and highlighting the item so that the customer can clearly see the item at the first time. Can also focus on the precision workbench of the production line, so that the light is concentrated on the workbench, rather than other non-important places, this can help employees work more efficiently and accurately, but also help avoid unnecessary mistakes and reduce damage to precision work.

LED Narrow（60°）

The 60-degree angle is specially designed for corridors, passages, and aisles. It provides the most suitable and uniform light without causing eye discomfort due to being too bright or too dark, especially for hospital patients.

LED Wide Angle (90°)

With a wide angle (90 degrees), multiple spaces, multiple areas can be easily illuminated, so that the entire The light distribution of the supermarkets is even, giving customers a good visual range and winning more popularity for the supermarket.

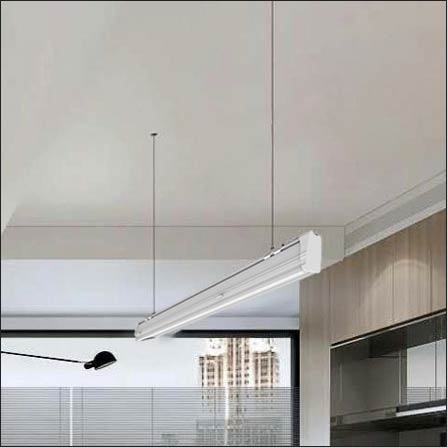

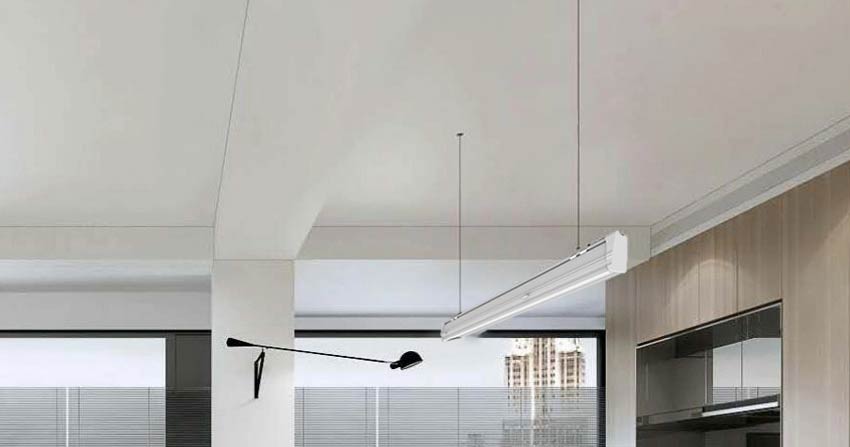

Application of 26W-85W Integrated Single LED Linear Lamp Fixture

  • Warehouse
  • Factory
  • Office
  • Supermarket
  • 4S Servie Center
  • Underground Parking Garage
  • Production Workshop
  • Railway Station
  • Museum
  • Laboratories
  • Wet Indoor Area
  • Garage
  • Workbench Area
  • Storage Area
  • Basements
  • Equipment Room
  • Parking Lot
  • Hotel
  • Home
  • Gymnasium ( Gym )
  • And so on

Popular Names

Linkable LED linear light is also called LED linear lamps, LED linear trunking system, LED linear lighting or LED trunk light, it is very popular lighting solution for those commercial and industrial space.

Installation Guide
