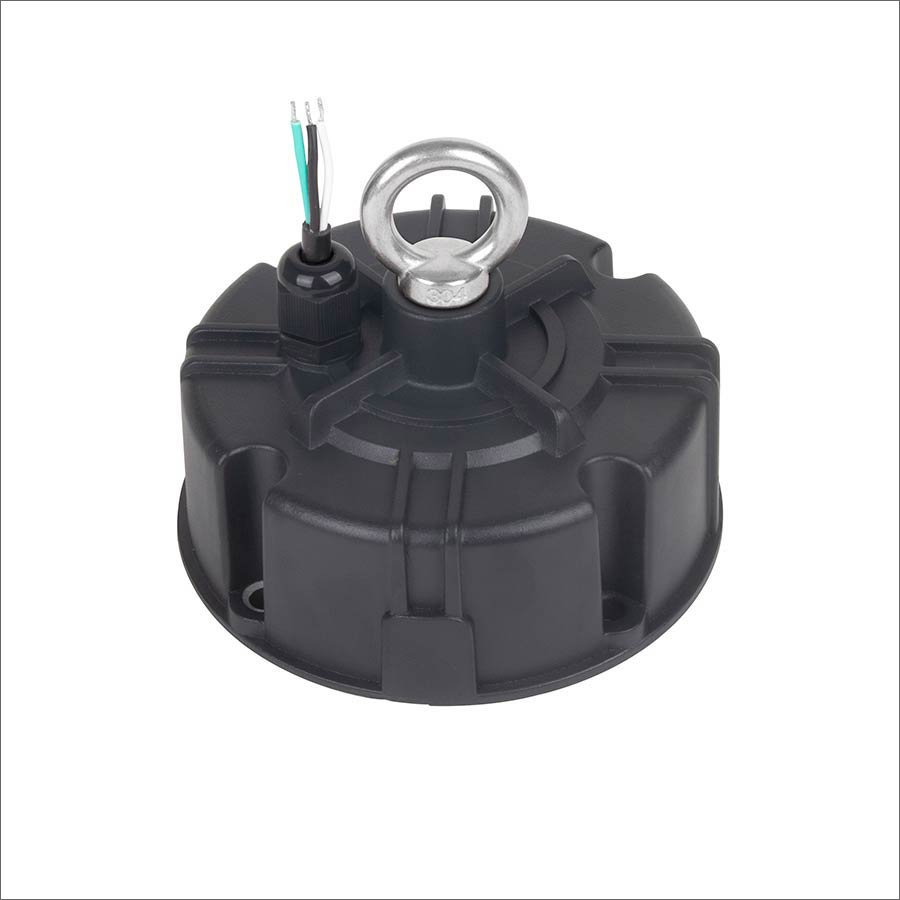

LA-100N LED Power Supply ( LED Power Driver )

LA 100W UL TUV CCC CE Dimmable Constant Current LED Power Supply for Industrial Lighting

  • Constant current mode
  • Non-isolated power supply
  • Non-isolated with double stage circuit
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • Isolated auxiliary power ( +5V, +12V, +24V )
Category:

Item: LA-100N
Power: 100W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 100W UL TUV CCC CE Dimmable Constant Current LED Power Supply

  • Efficiency up to 93%
  • Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
  • IP65
  • Protections: SCP/OTP/OVP/OPP
  • Surge Protection: L-N: 4kV, L/N-PE: 4kV



Model AC Input Range DC Output Range Output Current Output Power
LA-100N130 (100-277)Vac (70-130)Vdc 0.7-1.0A 100W
LA-100N260 (100-277)Vac (200-260)Vdc 0.35-0.45A 100W
