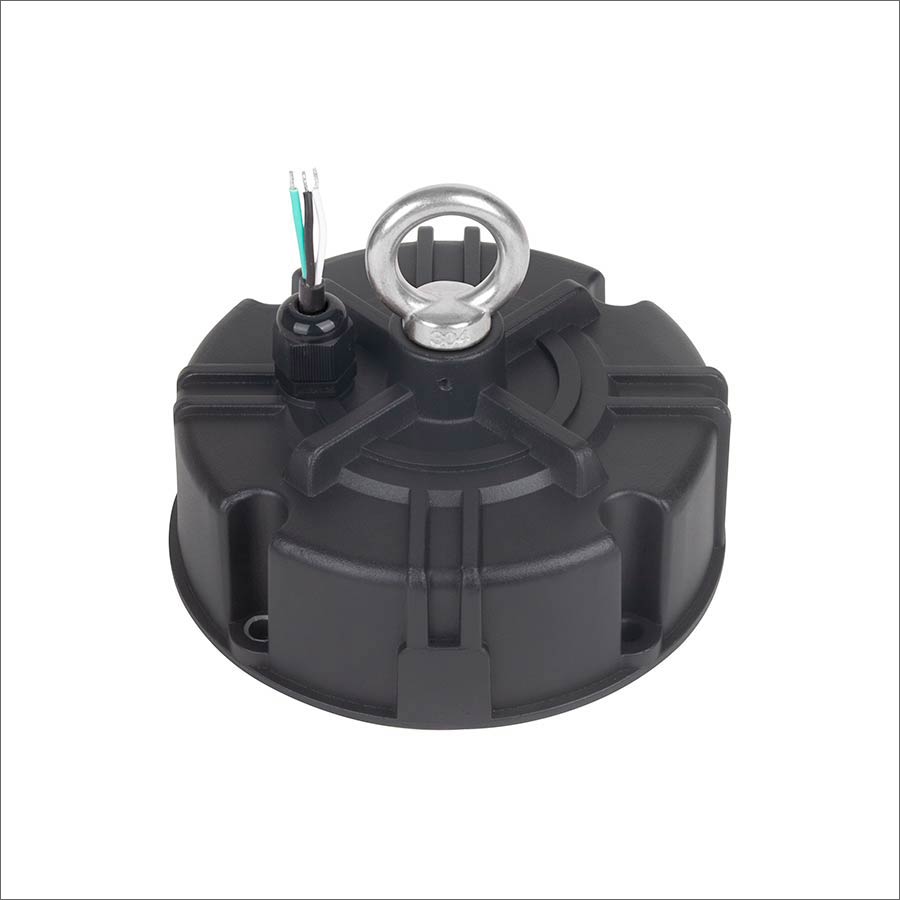

LA-240N LED Power Supply ( LED Power Driver )

LA 240W UL TUV CCC CE Dimmable Constant Current LED Power Supply for Industrial Lighting

  • Constant current mode
  • Non-isolated power supply
  • Non-isolated with double stage circuit
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • Isolated auxiliary power ( +5V, +12V, +24V )
Category:

Item: LA-240N
Power: 240W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 240W UL TUV CCC CE Dimmable Constant Current LED Power Supply

  • Efficiency up to 95%
  • Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
  • IP65
  • Protections: SCP/OTP/OVP/OPP
  • Surge Protection: L-N: 4kV, L/N-PE: 4kV



Model AC Input Range DC Output Range Output Current Output Power
LA-240N130 (100-277)Vac (70-130)Vdc 1.68-2.4A 240W
LA-240N260 (100-277)Vac (200-260)Vdc 0.85-0.95A 240W
