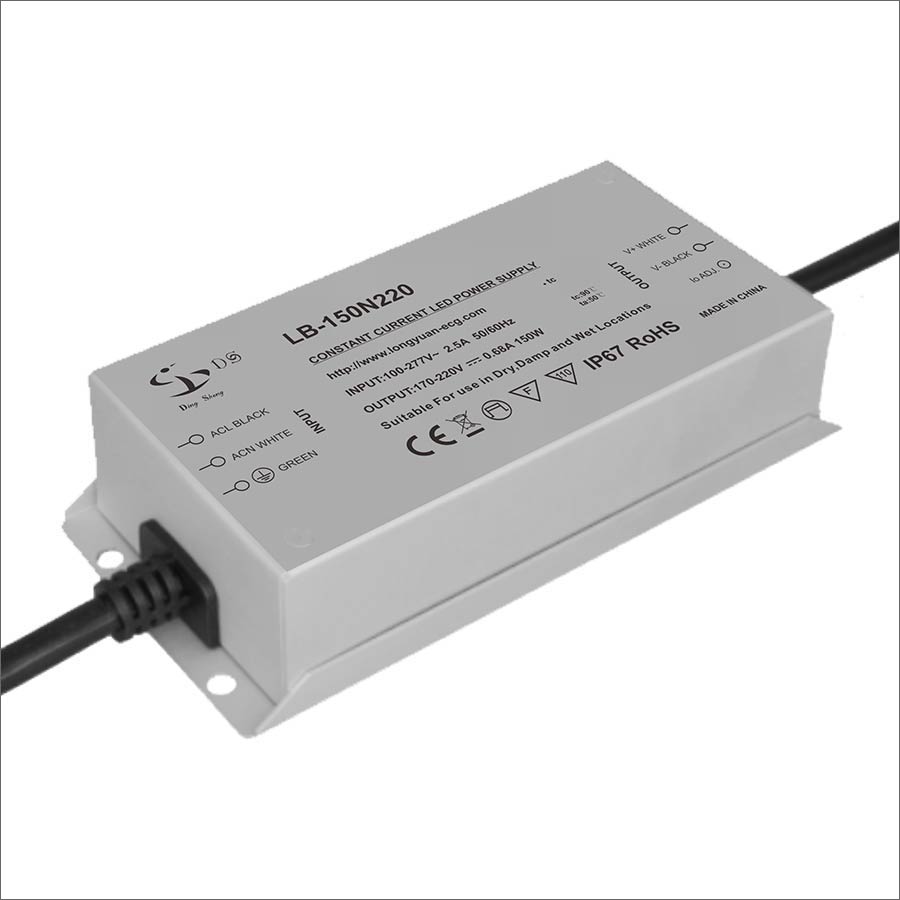

LB-150N LED Power Driver ( LED Power Supply )

LB 150W 1-10V Isolated Dimming Constant Current LED Driver with Surge Protection

  • Constant current mode
  • Non-isolated double stage power supply with aluminium case
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • Isolated auxiliary power ( +5V, +12V, +24V )
Category:

Item: LB-150N
Power: 150W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 150W 1-10V Isolated Dimming Constant Current LED Driver

Efficiency up to 92%
Isolated Dimming (Optional): 1-10V, PWM, Resistor and Timming
IP67
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 4kV, L/N-PE: 4kV



Model AC Input Range DC Output Range Output Current Output Power
LB-150N130 (100-277)Vac (70-130)Vdc 1.05-1.5A 150W
LB-150N180 (100-277)Vac (120-180)Vdc 0.65-0.9A 150W
LB-150N260 (100-277)Vac (200-260)Vdc 0.48-0.65A 150W
