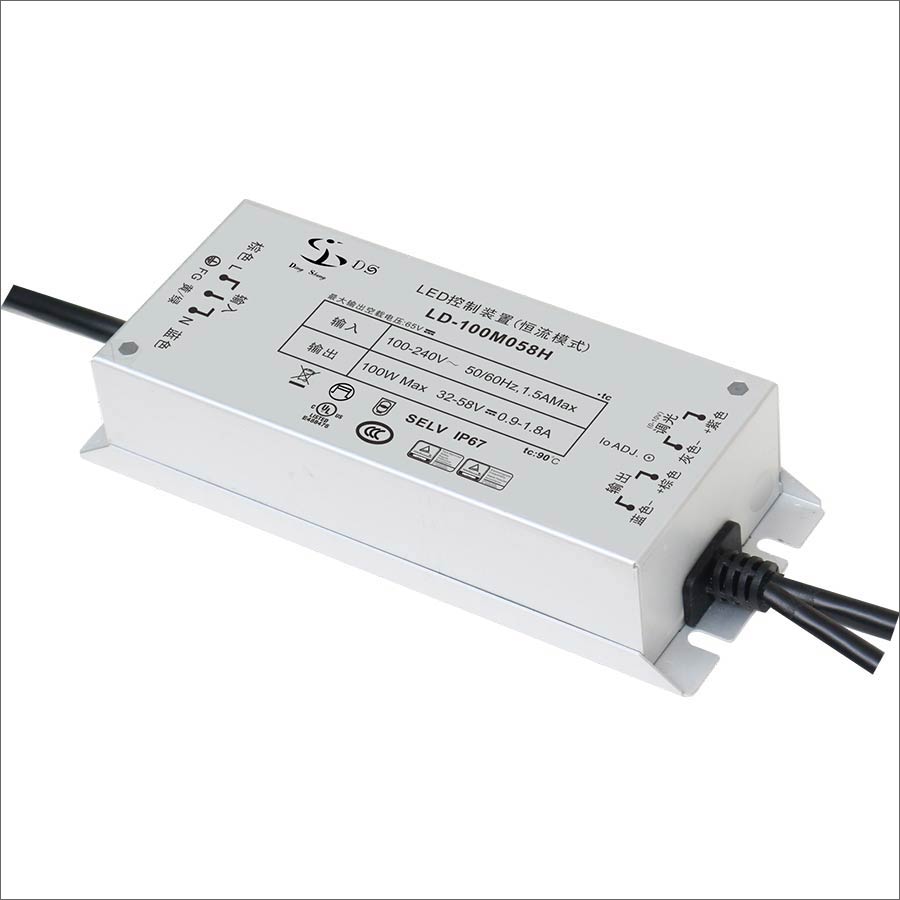

LD-100MH LED Power Driver ( LED Power Supply )

LD-H 100W 5 Years Warranty IP67 Constant Current Street Lighting LED Driver with SCP OCP OVP OTP

  • Constant current mode
  • Isolated power supply with aluminium case
  • Double stage circuit, flicker free
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function ( dim off or not )
  • With auxilliary power +12V ( optional )
Category:

Item: LD-100MH
Power: 100W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
8 Years Warranty

Features of 100W 5 Years Warranty Constant Current Street Lighting LED Driver

Efficiency up to 91%
Isolated Dimming (Optional): 1-10V, PWM, Resistor and Timming
IP67
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 6kV, L/N-PE: 10kV



Model AC Input Range DC Output Range Output Current Output Power
LD-100M042H (100-277)Vac (24-42)Vdc 1.8-3.1A 100W
LD-100M058H (100-277)Vac (32-58)Vdc 1.3-2.4A 100W
LD-100M072H (100-277)Vac (43-72)Vdc 1.0-1.8A 100W
LD-100M143H (100-277)Vac (72-143)Vdc 0.5-1.05A 100W
