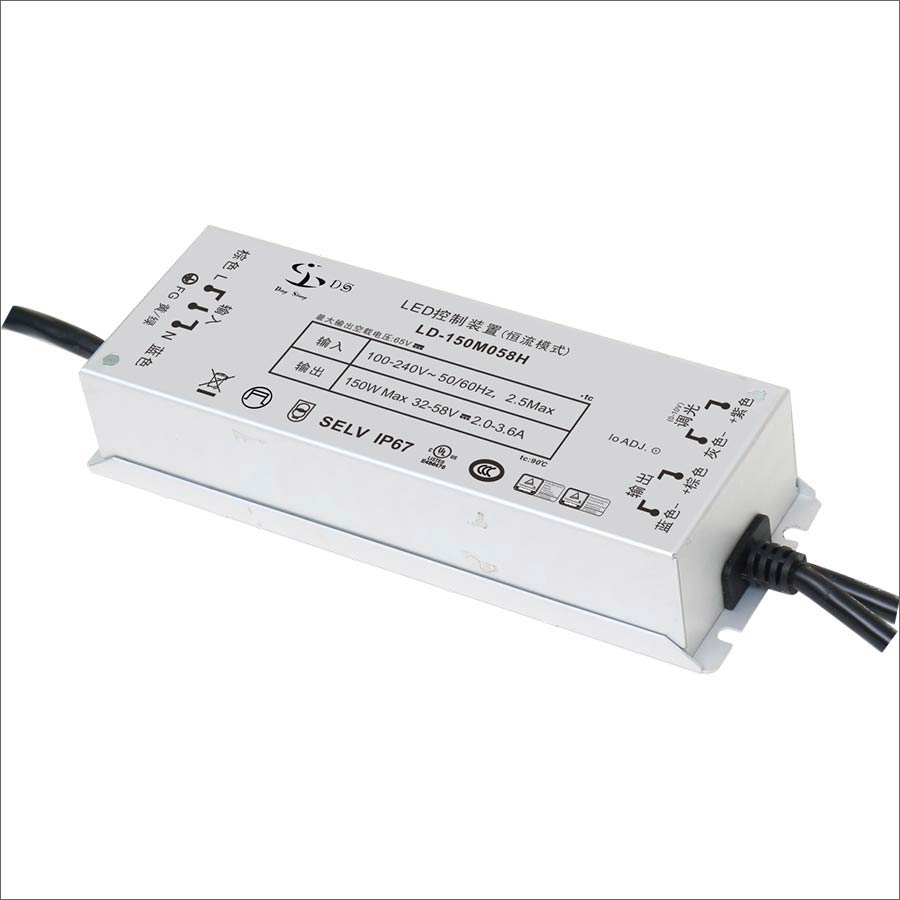

LD-150MH LED Power Driver ( LED Power Supply )

LD-H 150W IP67 Isolated Dimming Constant Current LED Driver for Street Lighting

Constant current mode
Isolated power supply with aluminium case
Double stage circuit, flicker free
Output current adjustable
Build-in 3-in-1, intelligent time isolated dimming function ( dim off or not )
With auxilliary power +12V ( optional )

Description
Reviews (0)

Item: LD-150MH
Power: 150W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
8 Years Warranty

Features of 150W Isolated Dimming Constant Current LED Driver

Efficiency up to 92%
Isolated Dimming (Optional): 1-10V, PWM, Resistor and Timming
IP67 waterproof
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 6kV, L/N-PE: 10kV

Model	AC Input Range	DC Output Range	Output Current	Output Power
LD-150M042H	(100-277)Vac	(24-42)Vdc	2.8-4.7A	150W
LD-150M058H	(100-277)Vac	(32-58)Vdc	2.0-3.6A	150W
LD-150M108H	(100-277)Vac	(54-108)Vdc	1.0-2.1A	150W
LD-100M215H	(100-277)Vac	(108-215)Vdc	0.5-1.05A	150W
