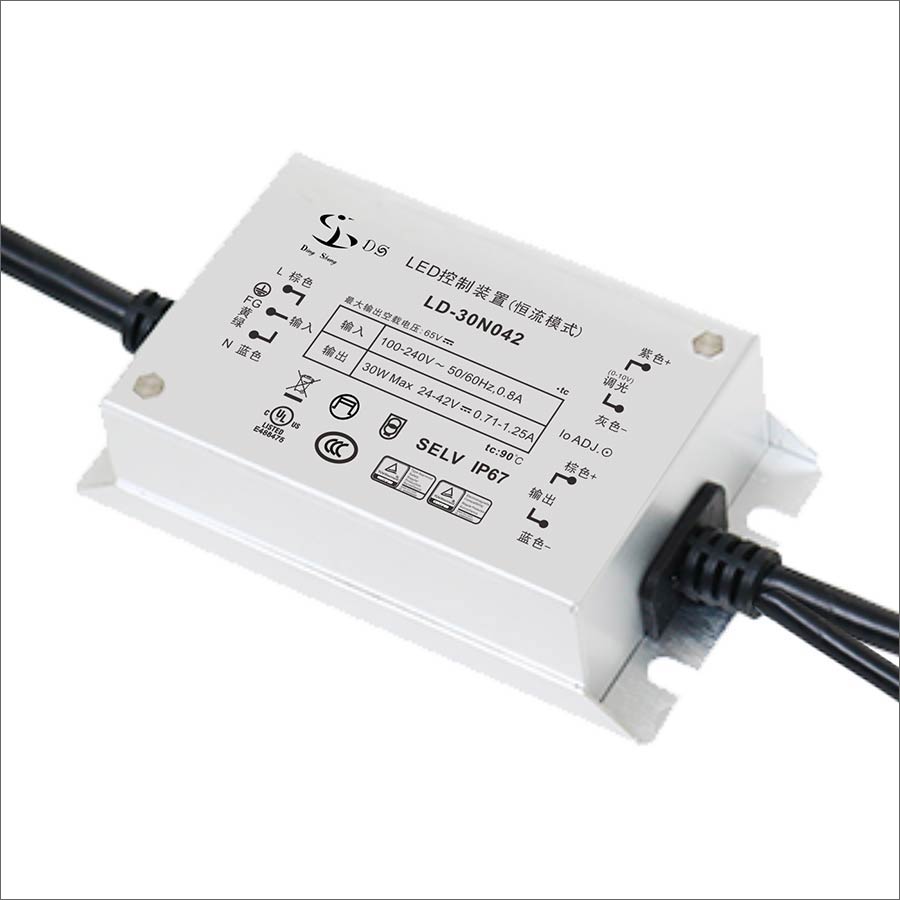

LD-30N LED Power Driver ( LED Power Supply )

LD 30W IP67 Waterproof Constant Current LED Lighting Power Driver with UL TUV CCC CE

  • Constant current mode
  • Isolated power supply with aluminium case
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function
Category:

Item: LD-30N
Power: 30W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 30W IP67 Waterproof Constant Current LED Lighting Power Driver

Efficiency up to 86%
Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
IP67
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 4kV, L/N-PE: 6kV
Operation temperature: -40~+60



Model AC Input Range DC Output Range Output Current Output Power
LD-30N042 (100-277)Vac (24-42)Vdc 0.71-1.25A 30W
LD-30N054 (100-277)Vac (36-54)Vdc 0.55-0.71A 30W
