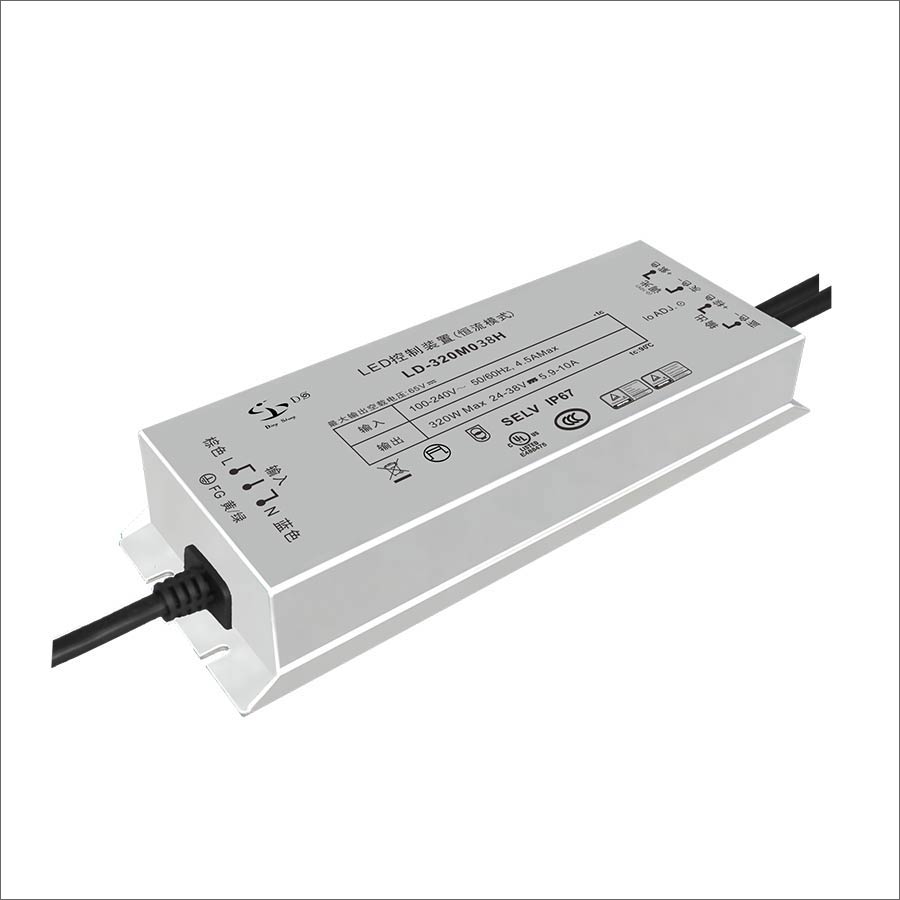

LD-320MH LED Power Driver ( LED Power Supply )

LD-H 320W Surge Protection Dimmable Constant Current LED Power Supply for Street Lighting

  • Constant current mode
  • Isolated power supply with aluminium case
  • Double stage circuit, flicker free
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function ( dim off or not )
  • With auxilliary power +12V ( optional )
Category:

Item: LD-320MH
Power: 320W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 320W Surge Protection Dimmable Constant Current LED Power Supply

Efficiency up to 94%
Isolated Dimming (Optional): 1-10V, PWM, Resistor and Timming
IP67
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 6kV, L/N-PE: 10kV



Model AC Input Range DC Output Range Output Current Output Power
LD-320M038H (100-277)Vac (24-38)Vdc 5.9-10A 320W
LD-320M054H (100-277)Vac (32-54)Vdc 4.1-7.6A 320W
