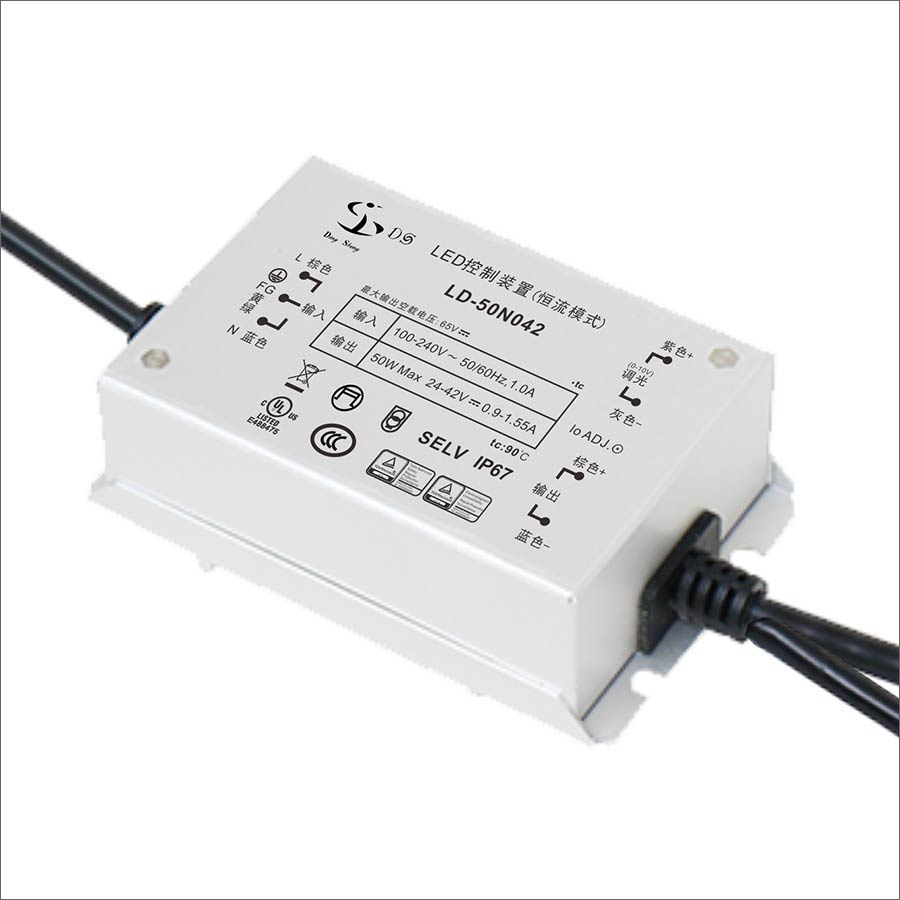

LD-50N LED Power Driver ( LED Power Supply )

LD 50W Waterproof Dimmable Constant Current LED Lighting Power Supply with 5 Years Warranty

  • Constant current mode
  • Isolated power supply with aluminium case
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function
Category:

Item: LD-50N
Power: 50W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 50W Dimmable Constant Current LED Lighting Power Supply

Efficiency up to 88%
Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
IP67
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 4kV, L/N-PE: 6kV
Operation temperature: -40~+60



Model AC Input Range DC Output Range Output Current Output Power
LD-50N042 (100-277)Vac (24-42)Vdc 0.9-1.55A 50W
LD-50N054 (100-277)Vac (36-54)Vdc 0.7-1.2A 50W
LD-50N072 (100-277)Vac (43-72)Vdc 0.5-0.7A 50W
