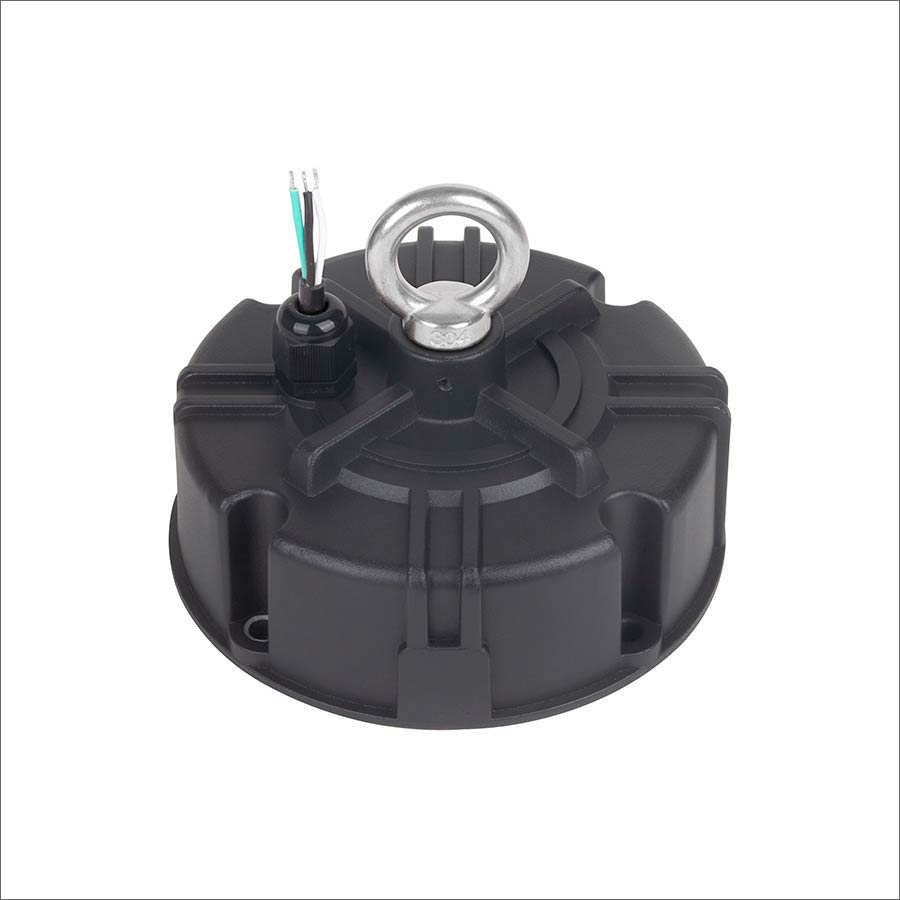

LE-160N LED Power Supply ( LED Power Driver )

LE 160W IP65 UL TUV CCC CE Dimmable Constant Current LED Driver For High Bay Light

  • Constant current mode
  • Isolated power supply for high bay light
  • Double stage circuit, flicker free
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • With auxiliary power ( +12V )
Category:

Item: LE-160N
Power: 160W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 160W IP65  Dimmable Constant Current LED Drivers

  • Efficiency up to 91%
  • Isolated Dimming (Optional): 0-10V, PWM, Resistor and Timming
  • IP65
  • Protections: SCP/OTP/OVP/OPP
  • Surge Protection: L-N: 4kV, L/N-PE: 6kV



Model AC Input Range DC Output Range Output Current Output Power
LE-160N038 (100-277) Vac (24-38) Vdc 2.9-5A 160W
LE-160N054 (100-277) Vac (27-54) Vdc 2.1-3.8A 160W
LE-160N068 (100-277) Vac (40-68) Vdc 1.7-2.85A 160W
