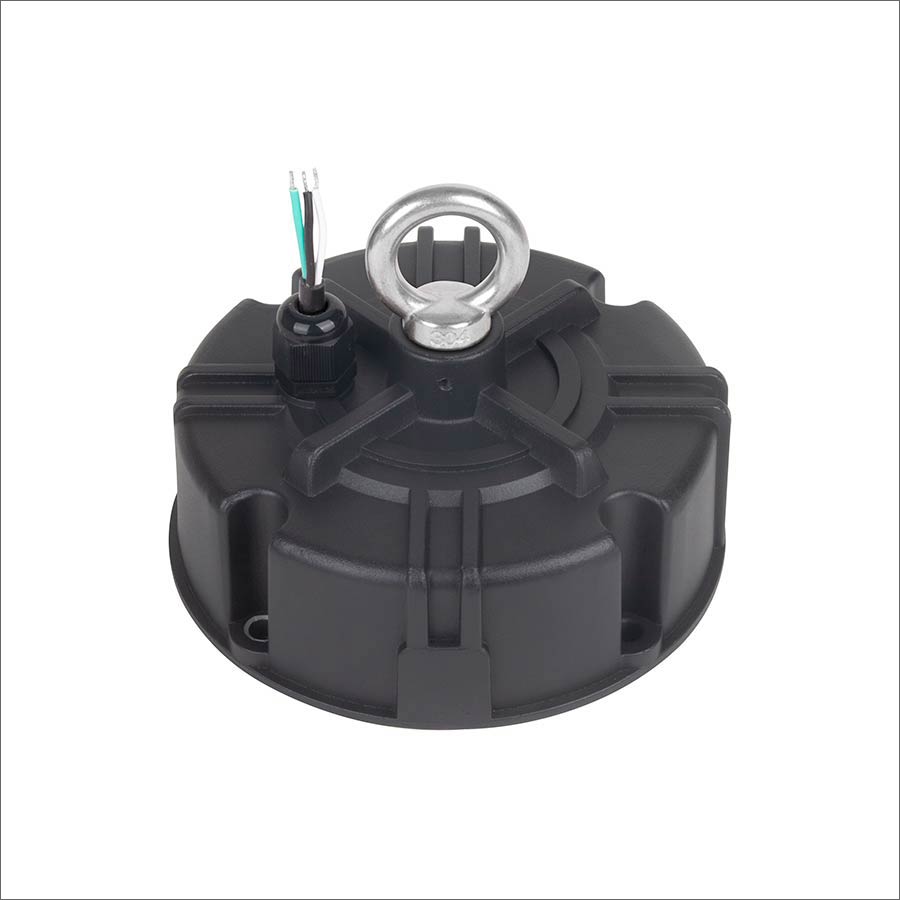

LE-200N LED Power Supply ( LED Power Driver )

LE 200W UL TUV CCC CE Dimmable Constant Current LED Driver with Surge Protection

  • Constant current mode
  • Isolated power supply for high bay light
  • Double stage circuit, flicker free
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • With auxiliary power ( +12V )
Category:

Item: LE-200N
Power: 200W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 200W UL TUV CCC CE Dimmable Constant Current LED Drivers

  • Efficiency up to 92%
  • Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
  • IP65
  • Protections: SCP/OTP/OVP/OPP
  • Surge Protection: L-N: 4kV, L/N-PE: 6kV



Model AC Input Range DC Output Range Output Current Output Power
LE-200N038 (100-277)Vac (24-38)Vdc 3.7-6.25A 200W
LE-200N054 (100-277)Vac (27-54)Vdc 2.6-4.8A 200W
LE-200N068 (100-277)Vac (40-68)Vdc 2-3.6A 200W
