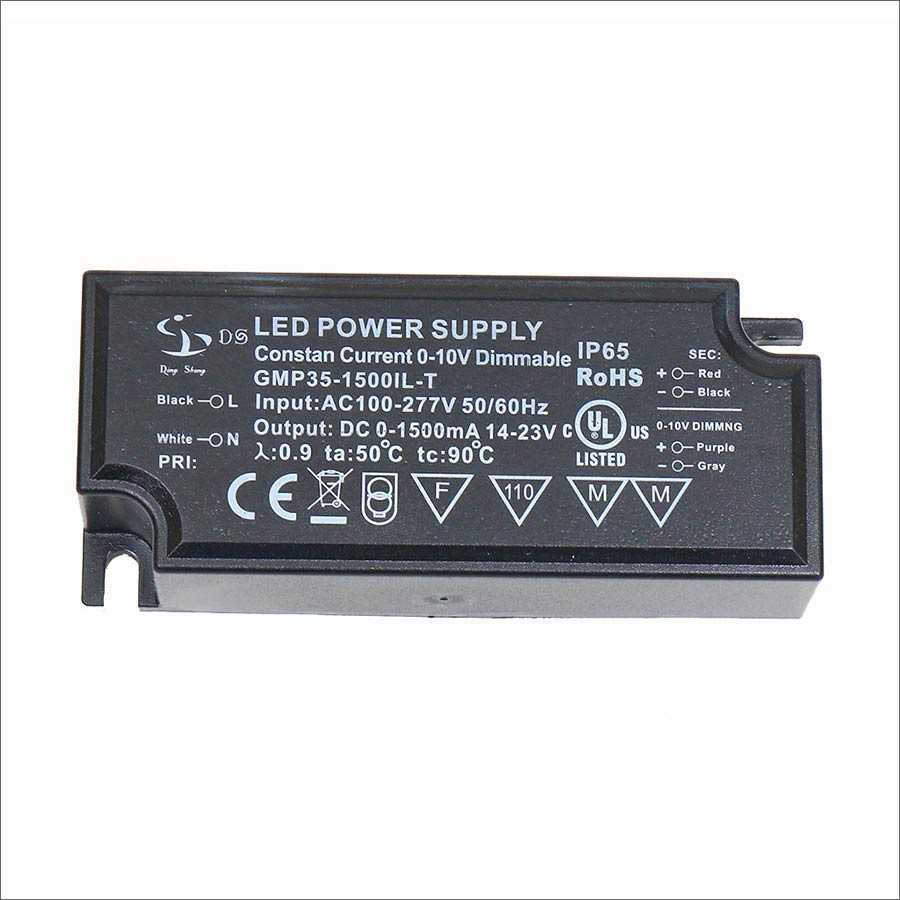

LG-35M LED Power Driver ( LED Power Supply )

LG 35W UL TUV CCC CE Dimmable Constant Current LED Power Supply with SCP OCP OVP OTP

Constant current mode
Isolated power supply with plastic case
Build in protection function of short circuit, over current, over voltage and over temperature
With 1-10v dimming function

Description
Reviews (0)

Item: LG-35M
Power: 35W
Application: Flood light, Stage light and Area light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 35W UL TUV CCC CE Dimmable Constant Current LED Power Supply

Efficiency up to 87%
Dimming (Optional): 0-10V, PWM, Resistor
IP65
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 2kV
Operation temperature: -40~+60

Model	AC Input Range	DC Output Range	Output Current	Output Power
LG-35M023	(100-277)Vac	(11-23)Vdc	(1.3-1.7)A	35W
LG-35M033	(100-277)Vac	(20-33)Vdc	(0.9-1.1)A	35W
LG-35M054	(100-277)Vac	(33-54)Vdc	(0.55-0.7)A	35W
