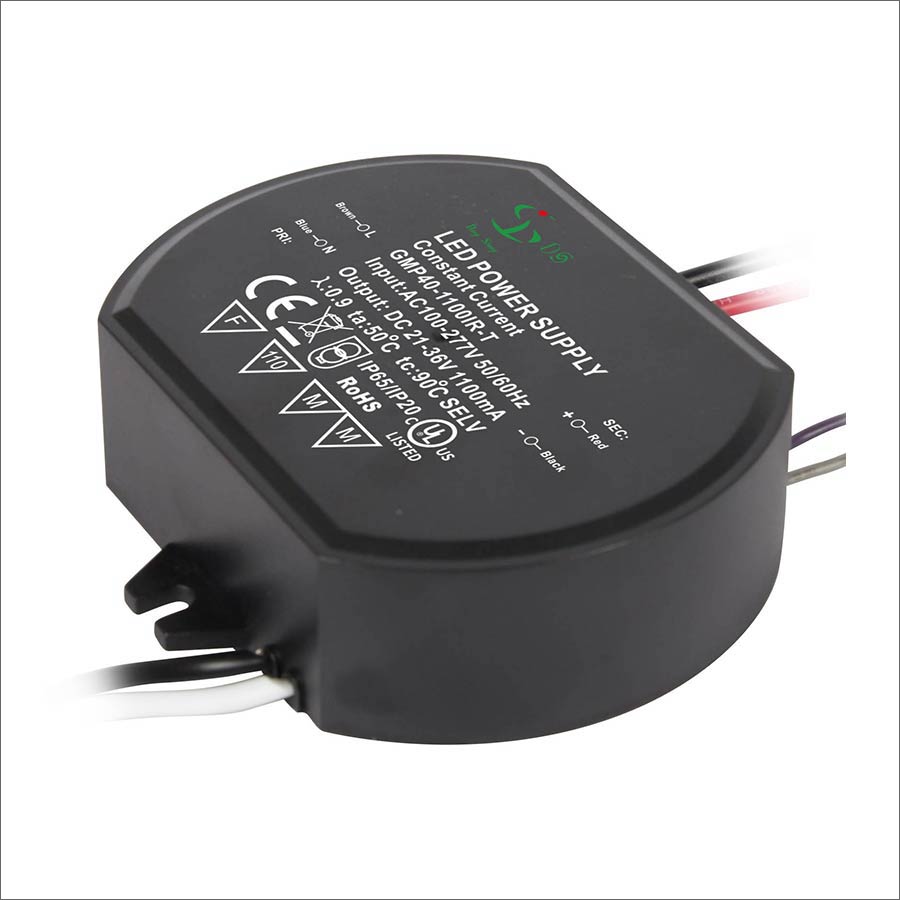

LG 40W Dimmable Constant Current LED Power Supply with 5 Years Warranty

  • Constant current mode
  • Isolated power supply with plastic case
  • Build in protection function of short circuit, over current, over voltage and over temperature
  • With 1-10v dimming function

Item: LG-40M
Power: 40W
Application: Flood light, Stage light and Area light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 40W Dimmable Constant Current LED Power Supply

Efficiency up to 88%
Dimming(Optional): 0-10V, PWM, Resistor
IP65
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 2kV
Operation temperature: -40~+60



Model AC Input Range DC Output Range Output Current Output Power
LG-40M023 (100-277)Vac (11-23)Vdc (1.5-1.95)A 40W
LG-40M033 (100-277)Vac (20-33)Vdc (2.2-1.3)A 40W
LG-40M054 (100-277)Vac (33-54)Vdc (0.65-0.83)A 40W
