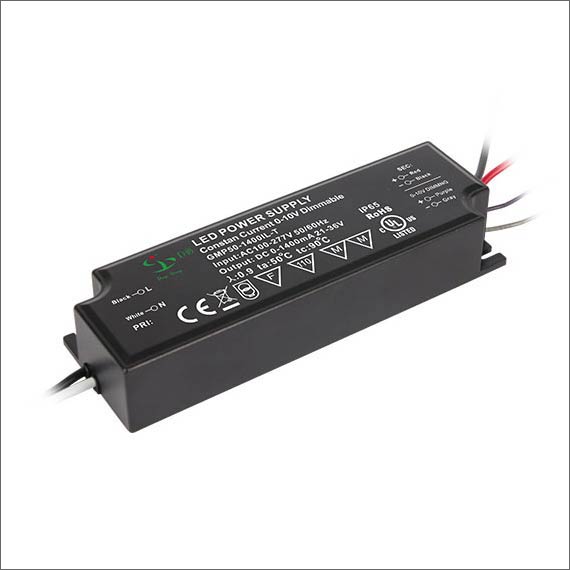

LG-A 60W Dimmable Constant Current LED Power Supply with UL TUV CCC CE Surge Protection

Constant current mode
Isolated power supply with plastic case
Build in protection function of short circuit, over current, over voltage and over temperature
With 1-10v dimming function
Build-in 3-in-1, intelligent time isolated dimming function ( dim off or not )
With auxilliary power +12V ( optional )

Item: LG-60MA
Power: 60W
Application: Flood light, Stage light and Area light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 60W Dimmable Constant Current LED Power Supply

Efficiency up to 89%
Isolated Dimming(Optional): 0-10V, PWM, Resistor
IP65
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 2kV
Operation temperature: -40~+60

Model	AC Input Range	DC Output Range	Output Current	Output Power
LG-60M023A	(100-277)Vac	(11-23)Vdc	(2.6-5.45)A	60W
LG-60M033A	(100-277)Vac	(20-33)Vdc	(1.8-3)A	60W
LG-60M054A	(100-277)Vac	(33-54)Vdc	(1.1-1.81)A	60W
