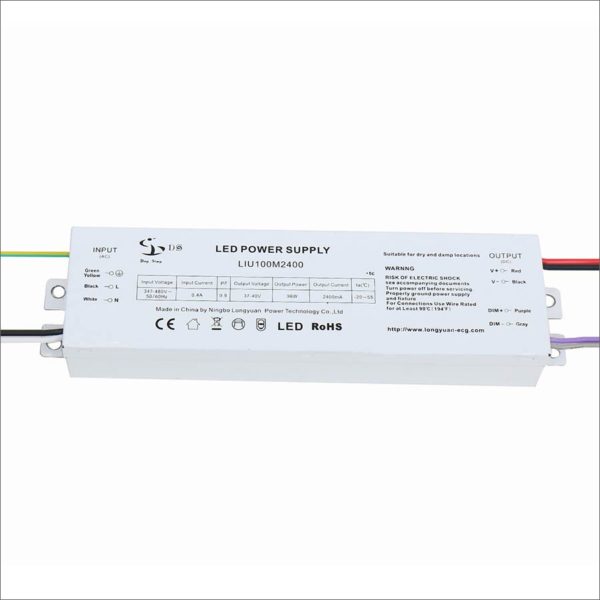

LI 100W IP65 UL TUV CCC CE Constant Current LED Driver for led indoor lighting

Constant current mode
Isolated power supply with iron case
Isolated with double stage circuit, flicker free
Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
Isolated auxiliary power ( +12V, +24V )
Build in protection function of short circuit, over current, over voltage and over temperature

Item: LI-100M
Power: 100W
Application: LED indoor lighting drivers. also available for street light, highbay, flood light, stage light and high-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 100W IP65 UL TUV CCC CE Constant Current LED Drivers

Efficiency up to 90%
Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
IP65
Protections: SCP/OTP/OVP/OPP
Surge Protection: L-N: 2kV, L/N-PE: 4kV
Operation temperature: -30~+55

Model	AC Input Range	DC Output Range	Output Current	Output Power
LI-100M042	(100-277)Vac	(25-42)Vdc	1.7-2.6A	100W
LI-100M055	(100-277)Vac	(42-55)Vdc	1.3-2A	100W
LI-100M090	(100-277)Vac	(55-90)Vdc	0.8-1.2A	100W
