Trunking Rail for 26W-85W Integrated Linkable LED Trunking Light System

Item: YB-01-D Trunking Rail
Product Name: Trunking Rail for 26W-65W Linkable LED Trunking Light System

Power: 26W 35W 55W 65W 85W
Rated Voltage: 100-277V
3 / 5 / 7 / 8 wire trunk rail
Length: 0.6m 1.2m 1.5m
Warranty 5 Years

Features of Trunking Rail for 26W-85W Linkable LED Trunking Light System

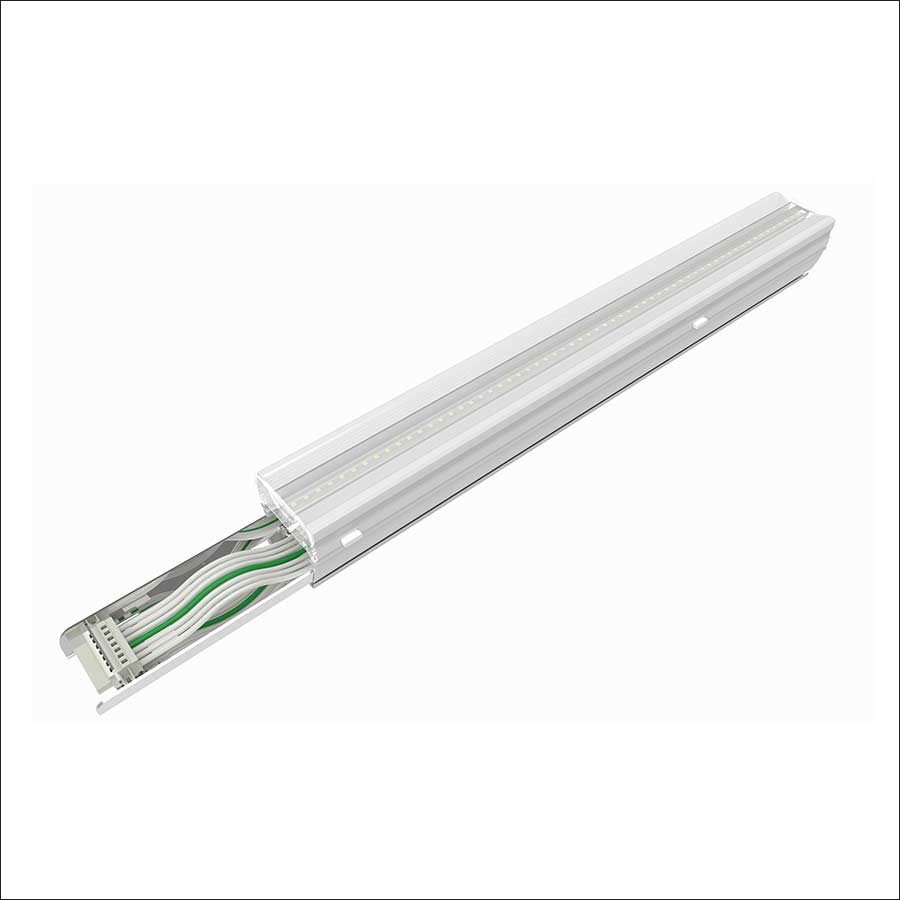

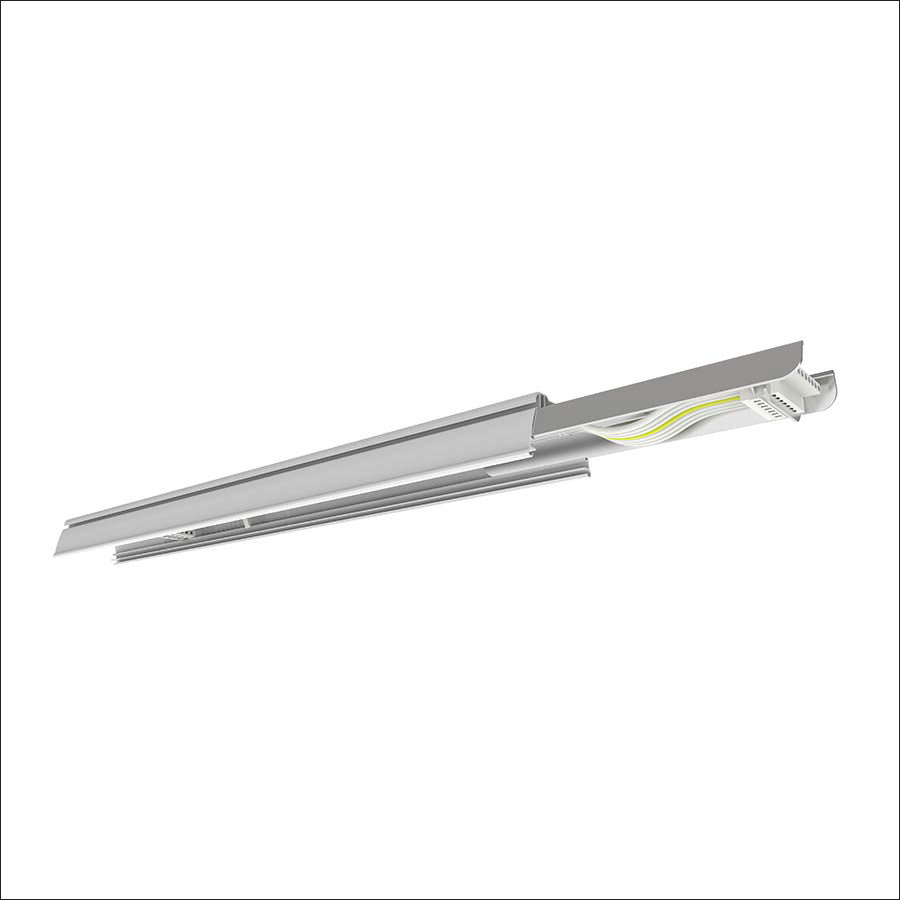

The track is the bracket to fix the lamp body.
The circuit preset in the track powers the lamp body.

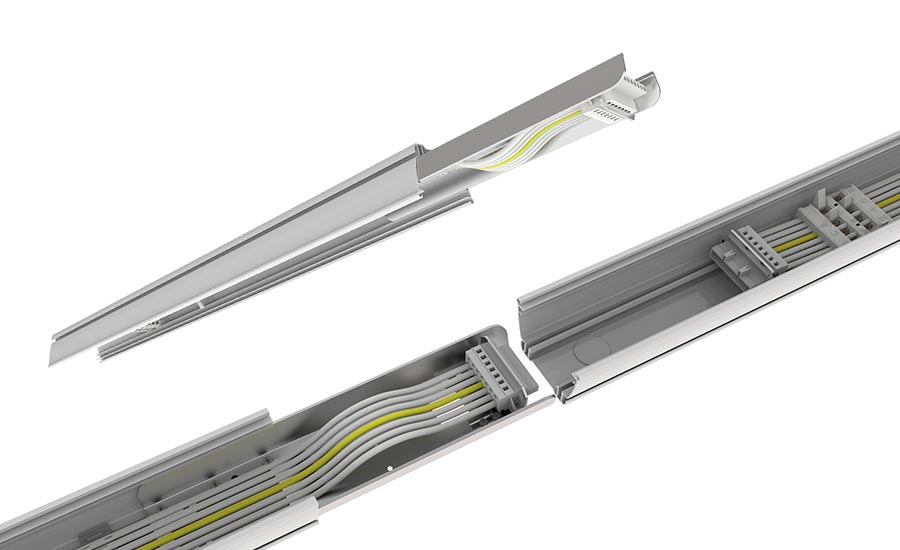

Linkable modular design, easy end-to-end plug-in connection with trunking rail moduls.
100% seamless connection without dark spot between modul units linked together.

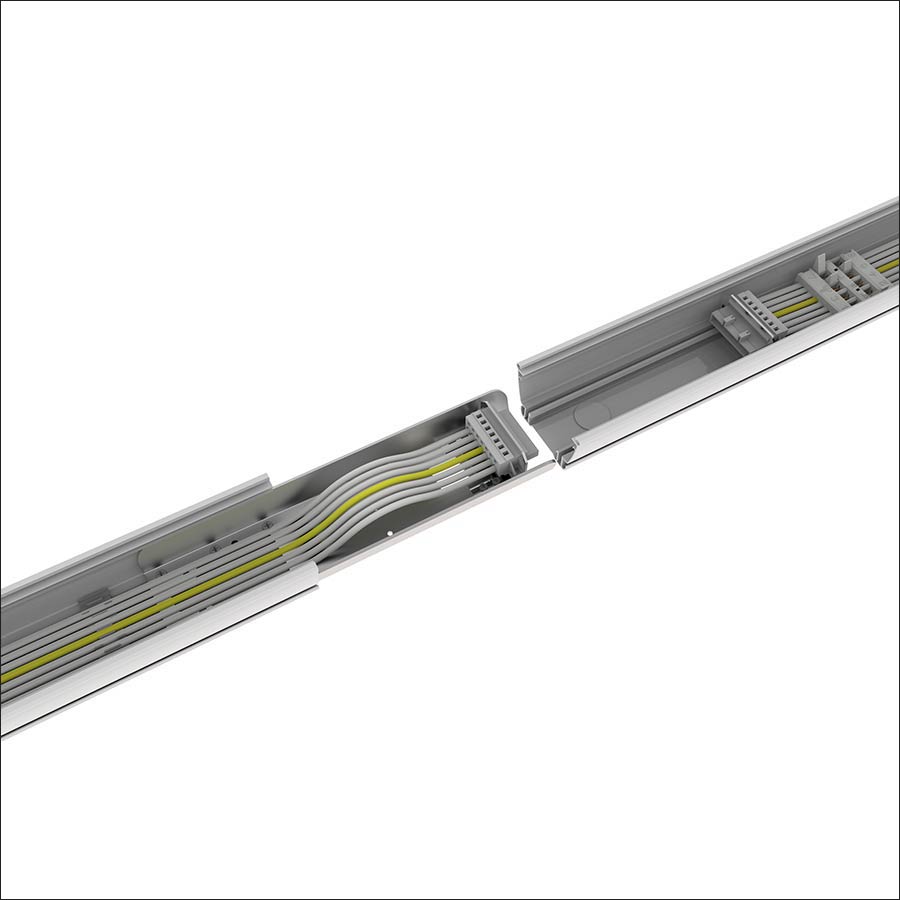

Splicing between tracks to form a system.
The trunking rails are pre-wired within the factory and are available in three standard sizes: 3, 5, and 7 wires. The 5th line is the basic power supply line, and the other line outside the 5th line is the function line, dimming and emergency functions.
There are 3 fire wires in 5 wires, and a common zero line and ground wire; toggle the phase selection terminal in the track to connect the lamp body to different electrical circuits.
Three FireWire external switches can easily realize the group management of different lamps in the system.
A 2.5 square wire cable with a maximum current of 16A. One wire allows the installation of 50 pieces 65W lights, it means allowing 50 pcs of 1500mm 65W in one serial row 220VAC power supply, what’s more, There are 3 live wires could shift, L1/L2/L3, it means 50 pcs* 3 = 150 pcs can be connected together for the trunking light system in one power source. ( In theory, 220V*18A = 3960W)
The track length is available in three sizes: 600mm/1200mm/1500mm, which corresponds to a lamp body of the same length.

Splice Wire of Trunk Rail — Wire ( Cable )

Splice Terminal of Trunk Rail — Splicing terminal

Splice Piece of Trunk Rail — Splice piece

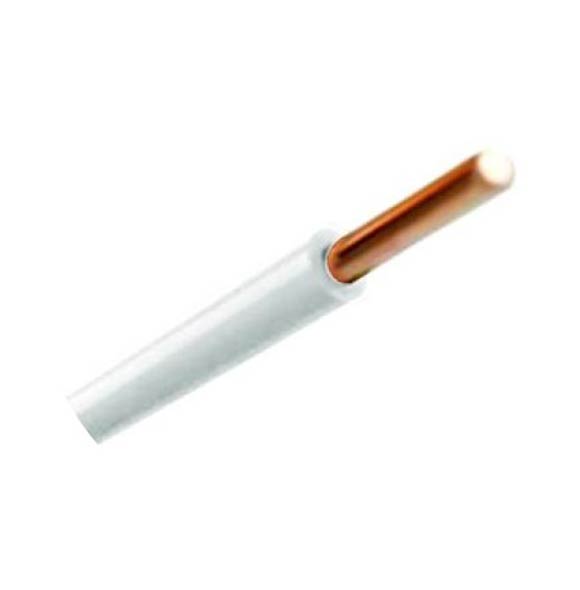

Wire ( Cable )
2.5mm2 wire diameter pure copper wire, the maximum allowable current is 16A.

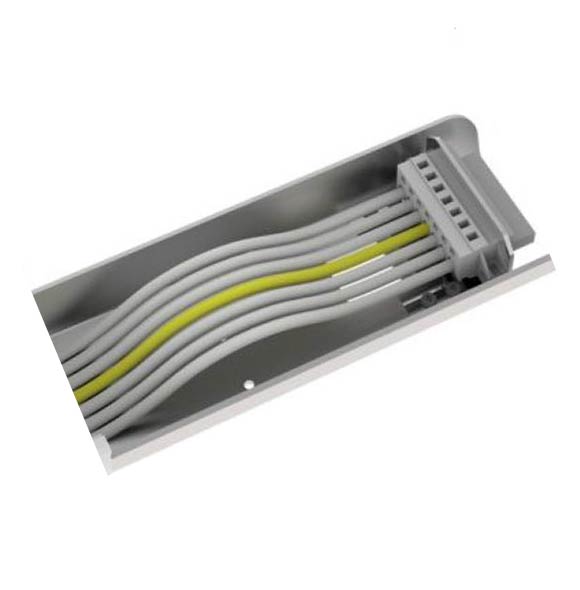

Splice piece
The unique splicing way ensures the safety and stability of the use process.

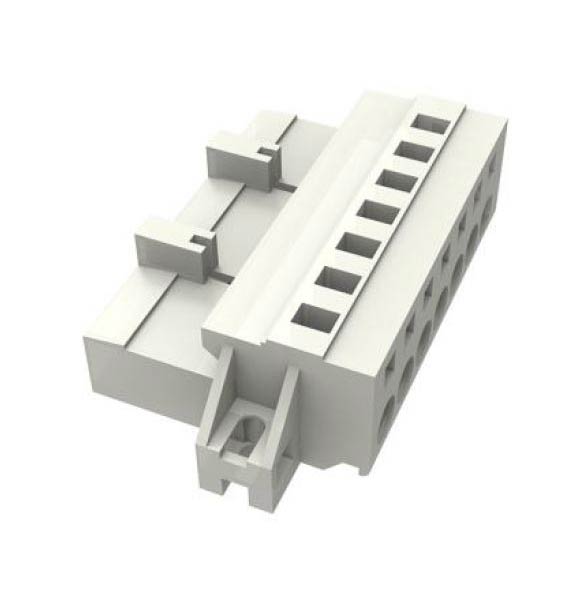

Splicing terminal
The wiring is safe and fast, with detection holes, simple structure, easy to install and test.

Trunk Rail of 3 5 7 8 Wires — 3 wire trunking rail

Trunk Rail of 7 8 Wires — 8 wire trunking rail

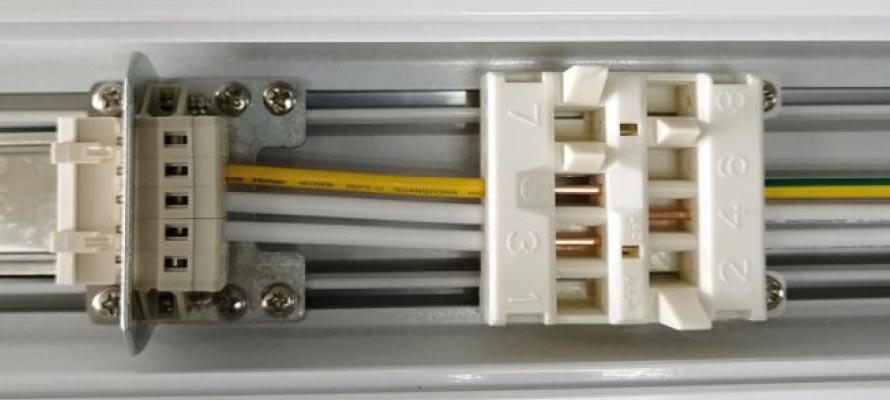

3 wire trunking rail

Seamless stitching，No need for bridges, no need to purchase additional materials, no wiring, provincial construction period, installation fees, labor costs, auxiliary materials costs, ceiling decoration costs.

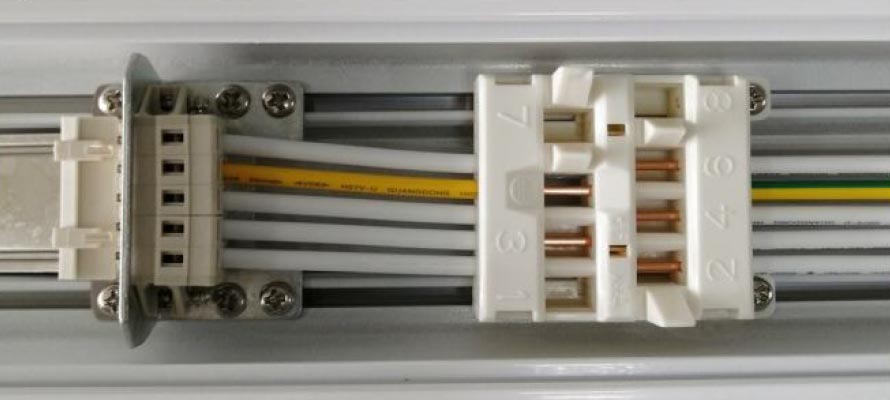

5 wire trunking rail

There are three fire lines in the five-wire track, a common zero line and ground line, for the basic power supply line, toggle the lamp body internal devices, select any L1, L2, L3 lines, to achieve independent segmentation (on / off) control.

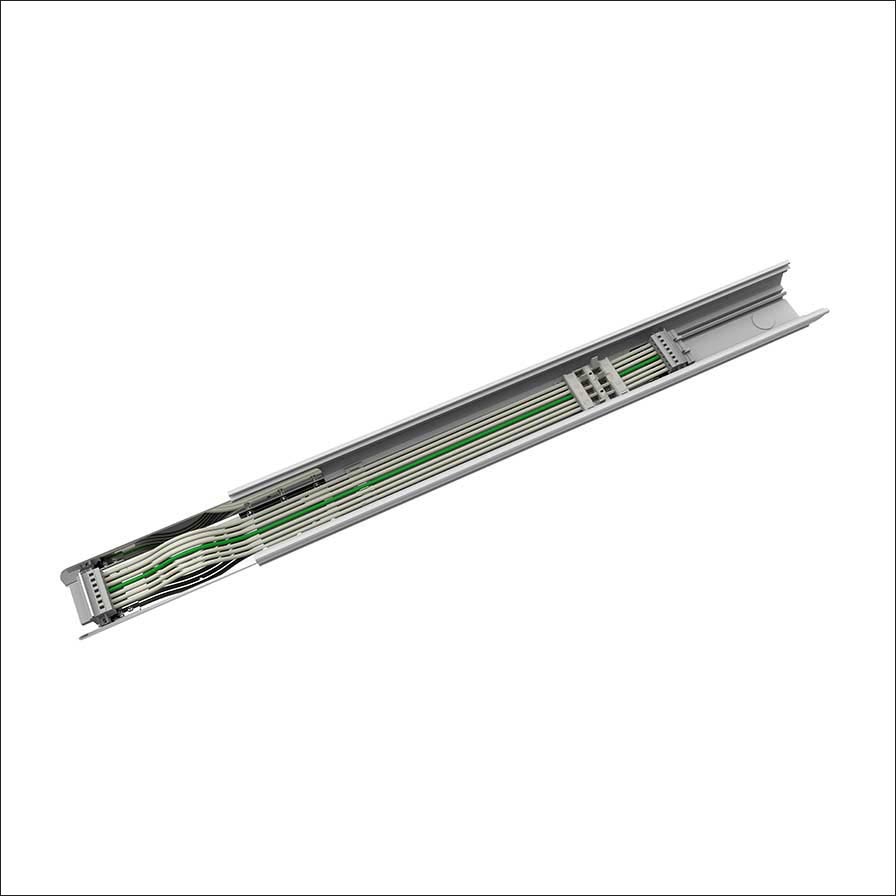

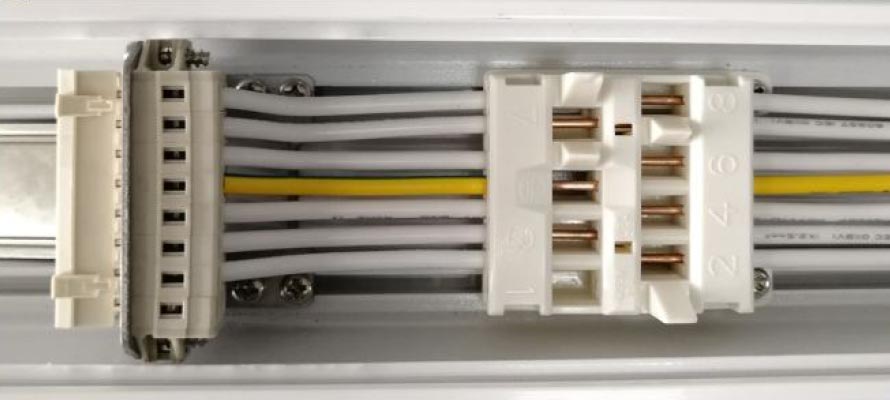

7 wire trunking rail

Two additional function lines based on the 5-wire function, with additional dimming / emergency / induction function, whichever one you prefer.
Dimming function (Dali / 1-10V)
Emergency Function (emergency battery / UPS system)
Induction Function (Microwave Sensor / Daylight Sensor)

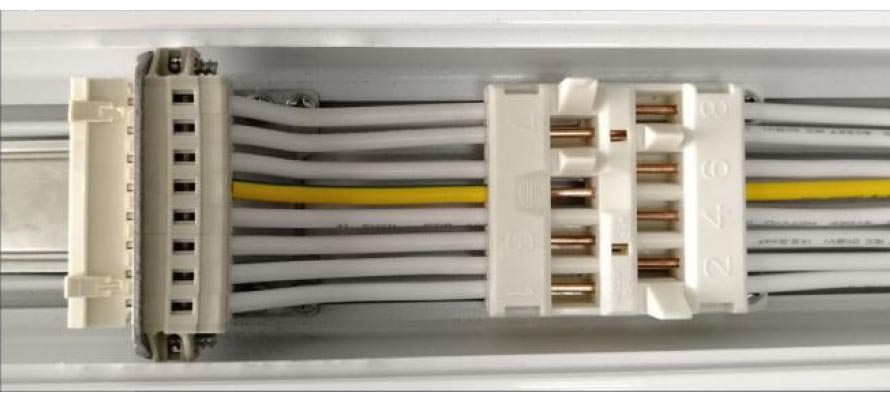

8 wire trunking rail
